MAP1100 Section-10 System/Partition Object

Procedure

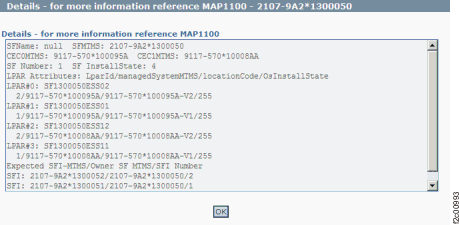

  1. Figure 1 is an example of the detail window for the System/partition object (in this example, an error condition is not shown).
    Figure 1. Window: System/partition object details
    Window: System/partition object details
  2. Description: The storage facility install state status is not showing as installed.
  3. Action: Contact your next level of support. The next level of support must remotely connect to repair this condition.
  4. Next level of support only:
    1. Check the IBM.EssStorageFacilitySystem objects on HMC. This verifies the number of CECs and checks for consistency of CEC MTMS between IBM.EssStorageFacility and IBM.EssStorageFacility System.
    2. Check IBM.EssStorageFacilityPartition objects on HMC to validate number of partitions.
