MAP1100 Section-13 RMC LPAR Resource Managers

About this task

Note: If the Large File Transfer (the 10th System Check Type status from the top) is FAILED, this System Check Type cannot be displayed.

Procedure

  1. Figure 1 is an example of the detail window for the RMC LPAR resource managers (in this example, an error condition is not shown).

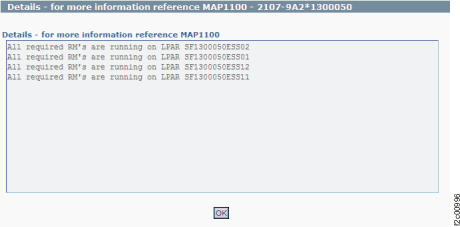

    Figure 1. Window: RMC LPAR resource managers details
    Window: RMC LPAR resource managers details
  2. Description: One or more resource managers are not active.
  3. Action: Contact your next level of support. The next level of support must remotely connect to repair this condition.
  4. Next level of support only: The command :/var/esshmc/log/lssrc -a is run and looks for active status for the following resource managers:
    • IBM.ConfigRM
    • ctrmc
    • cthats
    • cthags
    • IBM.ServiceRM
    • IBM.CSMAgentRM
    • IBM.essServerRM
    • IBM.essLPARServicesRM
    • IBM.essSADevicesRM
    • IBM.EssSAHARM
    • IBM.essHostAgentRM
    • IBM.essStorageAgentRM
    • IBM.HostRM
    • IBM.DRM
