Section-35, Cable bundle 3, connecting to the lower flash enclosure (I1-F04)

Procedure

  1. At the rear of the flash enclosure, remove the three pieces of white foam.
  2. At the upper flash enclosure cable tie bar, locate the cable group for the lower flash enclosure I1-F04.
  3. Connect the green power cable connector to the left power supply (P1-E1). Connect the yellow power cable connector to the right power supply (P1-E2). See Figure 1.

    Secure the power cable behind the power supply retention bracket Callout label 1. See Figure 2.

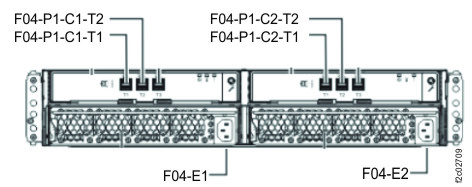

    Figure 1. Locations, flash enclosure (I1-F04)
    Locations, flash enclosure
    Figure 2. Flash enclosure power cable retention bracket
    Flash enclosure power cable retention bracket
  4. Remove the disposable covers (white box) for the upper connectors. Do not remove the blue LNK dust plug (white arrow). See Figure 3.

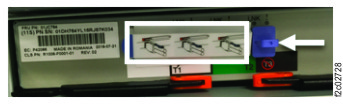

    Figure 3. Protectors for SAS connectors
    Protectors for SAS connectors
  5. Connect the SAS cables. The SAS connector blue pull tabs must be down.
