CEC enclosure part numbers, Model 961

Information about CEC enclosure parts is listed. Use Table 1 as a directory.
Note: The following part numbers are the most recent for this version of the Parts Catalog. Your storage facility or serviceable event FRU list might contain an older or newer part number. The parts-ordering system recognizes all valid part numbers and automatically substitutes an available part number as needed.
Table 1. Start here, CEC enclosure parts (Model 961)
Part name Figure
CEC enclosure cables, rear of rack Figure 5
CEC enclosure control panel Figure 1
CEC enclosure disk drive Figure 1
CEC enclosure disk drive backplane Figure 1
Figure 2
CEC enclosure Ethernet dual 1 Gb copper card Figure 4
CEC enclosure front fan Figure 1
CEC enclosure middle fan Figure 2
CEC enclosure I2C interface card assembly Figure 2
CEC enclosure memory card Figure 2
CEC enclosure memory module Figure 3
CEC enclosure PCIe single-port card (V2) Figure 4
CEC enclosure PCIe three-port card Figure 4
CEC enclosure power supply Figure 4
CEC enclosure processor module Figure 2
CEC enclosure RS-485 serial interface card Figure 4
CEC enclosure service access cover power interlock switch Figure 8
CEC enclosure sheet metal parts Figure 6
Figure 7
Figure 8
CEC enclosure system backplane Figure 2
CEC enclosure card time-of-day battery Figure 2
CEC enclosure vital product data (VPD) card Figure 2
CEC enclosure voltage regulator module (VRM) Figure 2

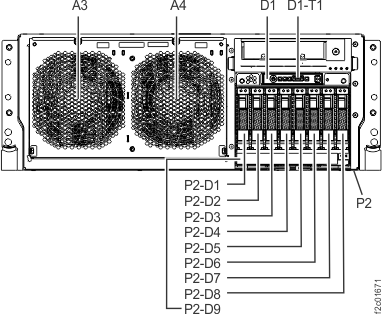

Figure 1. CEC enclosure location codes (front)
CEC enclosure location codes (front)
Table 2. CEC enclosure parts (front view) (Model 961)
Location code Part name CCIN1 Part number
Un-A3
Un-A4 		CEC enclosure fan 6B1D 74Y5220
Un-D1 CEC enclosure control panel assembly 2BCD 74Y3964
Un-D1-T1 Not used
Un-P2 CEC enclosure disk drive backplane 2BD5 00E0968
Un-P2-D1 to D6 CEC enclosure disk drive   00E6169
Un-P2-D7
Un-P2-D8 		Not used
Notes: Important, read this entire note as there are exceptions to what part number to order. The custom card identification number (CCIN) identifies the physical features and logical behavior of a part. If two parts appear physically identical but have different CCINs, they are not interchangeable unless stated elsewhere in the maintenance package or by the next level of support. If two parts have different part numbers and yet have the same CCIN, they are interchangeable.

When you order a part number reported in a serviceable event or call home record, check if the parts ordering system has a conditional substitute for DS8000®. There are some exceptions where the part number on the DS8000 FRU part number is not the same one that is reported and called home. The part number reported and called home may be the original eServer™ P/N which may have firmware that is not appropriate for DS8000. You must order the DS8000 FRU part number to ensure the correct firmware is present.
Figure 2. CEC enclosure location codes (top) (Model 961)
CEC enclosure location codes (top)
Table 3. CEC enclosure parts (top view) (Model 961)
Location code Part name CCIN1 Part number
Un-A1
Un-A2
Un-A3
Un-A4		 CEC enclosure fan 6B1D 74Y5220
Un-P1 CEC enclosure system backplane (8205-E6C) 2B4A 00E3133
Un-P1 CEC enclosure system backplane (8205-E6D) 2B2C 00E3142
Un-P1-C1-A1
Un-P1-C1-A2 		Not used
Un-P1-C9 CEC enclosure voltage regulator module (VRM) (8205-E6C)   00J0254
Un-P1-C9 CEC enclosure voltage regulator module (VRM) (8205-E6C, 8205-E6D) 2B50 00E7160
Un-P1-C10
Un-P1-C11		 CEC enclosure processor module FRU kit, 3.55 GHz, 4-core (8205-E6C) (Kit includes processor module and replacement tools. Module cannot be ordered separately.) 542B 00E7357
Un-P1-C10
Un-P1-C11		 CEC enclosure processor module FRU kit, 3.55 GHz, 8-core (8205-E6C) (Kit includes processor module and replacement tools. Module cannot be ordered separately.) 543C 74Y8598
Un-P1-C10
Un-P1-C11		 CEC enclosure processor module FRU kit, 4.228 GHz, 4-core (8205-E6D) (Kit includes processor module and replacement tools. Module cannot be ordered separately.) 549B 00E8894
Un-P1-C10
Un-P1-C11		 CEC enclosure processor module FRU kit, 4.228 GHz, 8-core (8205-E6D) (Kit includes processor module and replacement tools. Module cannot be ordered separately.) 54AD 00E7468
Un-P1-C10
Un-P1-C11		 CEC enclosure processor module heat sink FRU kit (Kit includes heat sink and indium pad)   74Y7420
Un-P1-C12 CEC enclosure voltage regulator module (VRM) (8205-E6C)   00J0254
Un-P1-C12 CEC enclosure voltage regulator module (VRM) (8205-E6C, 8205-E6D) 2B50 00E7160
Un-P1-C14 Not used
Un-P1-C15
Un-P1-C16
Un-P1-C17
Un-P1-C18		 CEC enclosure memory card
Note: For memory modules see Figure 3.
 2C1C 00E0638
Un-P1-C19 CEC enclosure I2C interface card
(FRU kit includes Un-P1-C19 interface, Un-P1-C1-C1 passive connector, and cables) 		  98Y3111
Un-P1-C20 CEC enclosure VPD card (8205-E6C) 527F 98Y1480
Un-P1-C20 CEC enclosure VPD card (8205-E6D) 52FB 98Y4467
Un-P1-E1 CEC enclosure time-of-day battery   74Y9628
Un-P2 CEC enclosure disk drive backplane 2BD5 00E0968
Notes: Important, read this entire note as there are exceptions to what part number to order. The custom card identification number (CCIN) identifies the physical features and logical behavior of a part. If two parts appear physically identical but have different CCINs, they are not interchangeable unless stated elsewhere in the maintenance package or by the next level of support. If two parts have different part numbers and yet have the same CCIN, they are interchangeable.

When you order a part number reported in a serviceable event or call home record, check if the parts ordering system has a conditional substitute for DS8000. There are some exceptions where the part number on the DS8000 FRU part number is not the same one that is reported and called home. The part number reported and called home may be the original eServer P/N which may have firmware that is not appropriate for DS8000. You must order the DS8000 FRU part number to ensure the correct firmware is present.
Figure 3. Memory module locations on the memory card (Un-P1-Cx) (Model 961)
Memory module locations on the memory card (Un-P1-Cx)
Table 4. CEC enclosure memory modules (Model 961)
Location code Part name CCIN1 Part number
P1-Cx-C1
P1-Cx-C2
P1-Cx-C3
P1-Cx-C4
P1-Cx-C7
P1-Cx-C8
P1-Cx-C9
P1-Cx-C10		 CEC enclosure memory module, 4 GB (8205-E6C or 8205-E6D) 31F3 78P0554
CEC enclosure memory module, 8 GB (8205-E6C)
(replace only with same CCIN, do not intermix 31F4 and 31FA)		 31F4 78P0555
CEC enclosure memory module, 8 GB (8205-E6C)
(replace only with same CCIN, do not intermix 31F4 and 31FA)		 31FA 78P1914
CEC enclosure memory module, 8 GB (8205-E6D) 31FA 78P1914
CEC enclosure memory module, 16 GB (8205-E6C)
(replace only with same CCIN, do not intermix 31F5 and 31FB)		 31F5 78P0639
CEC enclosure memory module, 16 GB (8205-E6C)
(replace only with same CCIN, do not intermix 31F5 and 31FB)		 31FB 78P1915
CEC enclosure memory module, 16 GB (8205-E6D) 31FB 78P1915
Notes: Important, read this entire note as there are exceptions to what part number to order. The custom card identification number (CCIN) identifies the physical features and logical behavior of a part. If two parts appear physically identical but have different CCINs, they are not interchangeable unless stated elsewhere in the maintenance package or by the next level of support. If two parts have different part numbers and yet have the same CCIN, they are interchangeable.

When you order a part number reported in a serviceable event or call home record, check if the parts ordering system has a conditional substitute for DS8000. There are some exceptions where the part number on the DS8000 FRU part number is not the same one that is reported and called home. The part number reported and called home may be the original eServer P/N which may have firmware that is not appropriate for DS8000. You must order the DS8000 FRU part number to ensure the correct firmware is present.
Figure 4. Location codes for the CEC enclosure (rear view) (Model 961)
Location codes for the CEC enclosure (rear view) (Models 961)
Table 5. CEC enclosure parts (rear) (Model 961)
Location code Part name CCIN1 Part number
Un-E1
Un-E2 		CEC enclosure power supply 1725W (8205-E6C) 2B46 00E7187
Un-E1
Un-E2 		CEC enclosure power supply 1925W (8205-E6D) 2BED 00E8277
Un-P1 CEC enclosure system backplane (8205-E6C) 2B4A 00E3133
Un-P1 CEC enclosure system backplane (8205-E6D) 2B2C 00E3142
Un-P1-C1 CEC enclosure PCIe three-port card 2C19 98Y2304
Un-P1-C1-C1 CEC enclosure I2C passive connector card
(see Un-P1-C19 CEC enclosure I2C interface card, Table 3)
Un-P1-C1-C2
Un-P1-C1-C3
Un-P1-C1-C4		 Not used
Un-P1-C2 CEC enclosure Ethernet four-port 1Gb copper card (8205-E6C) 576F 74Y4064
Un-P1-C2 CEC enclosure Ethernet four-port 1Gb copper card (8205-E6C, 8205-E6D) 576F 00E2873
Un-P1-C3
Un-P1-C4 		CEC enclosure PCIe single-port card   99Y1270
Un-P1-C5 CEC enclosure RS-485 serial interface card   98Y2609
Un-P1-C6 Not used
Un-P1-C8 CEC enclosure PCIe three-port card 2C19 98Y2304
Figure 5. CEC enclosure cables (rear view)
Location codes for the CEC enclosure (rear view) (Models 961)
Table 6. CEC enclosure cables (rear view) (Model 961)
Location code Part name Part number
Un-E1-J1 CEC enclosure power supply to PDU cable (upper CEC) 46X7489
CEC enclosure power supply to PDU cable (lower CEC) 98Y2547
Un-E2-J1 CEC enclosure power supply to PDU cable (upper CEC) 98Y2536
CEC enclosure power supply to PDU cable (lower CEC) 98Y2537
Un-P1-C1-T1 PCI cable, Models 961, 96E See Section-2 PCIe cables for two, four, and eight I/O enclosures.
Un-P1-C1-T2 PCI cable, Models 961, 96E See Section-2 PCIe cables for two, four, and eight I/O enclosures.
Un-P1-C1-T3 PCI cable, Models 961, 96E See Section-2 PCIe cables for two, four, and eight I/O enclosures.
Un-P1-C1-C1-T1 RPC card to CEC enclosure I2C cable (RPC-1 to upper CEC) 99Y0898
RPC card to CEC enclosure I2C cable (RPC-1 to lower CEC) 99Y0900
Un-P1-C1-C1-T2 RPC card to CEC enclosure I2C cable (RPC-2 to upper CEC) 99Y0902
RPC card to CEC enclosure I2C cable (RPC-2 to lower CEC) 99Y0904
Un-P1-C1-C2 Not used
Un-P1-C1-C3 Not used
Un-P1-C1-C4 Not used
Un-P1-C2-T1 Ethernet cable (SW1 to upper CEC XC1 LPAR, black) 99Y0492
Ethernet cable (SW1 to lower CEC XC2 LPAR, black) 99Y0493
Un-P1-C2-T2 Ethernet cable (SW2 to upper CEC XC1 LPAR, gray) 99Y0496
Ethernet cable (SW2 to lower CEC XC2 LPAR, gray) 99Y0497
Un-P1-C3-T1 PCI cable, Models 961, 96E See Section-2 PCIe cables for two, four, and eight I/O enclosures.
Un-P1-C4-T1 PCI cable, Models 961, 96E See Section-2 PCIe cables for two, four, and eight I/O enclosures.
Un-P1-C5-T1 RPC card to CEC enclosure serial cable (RPC-1 to upper CEC) 99Y1137
RPC card to CEC enclosure serial cable (RPC-1 to lower CEC) 99Y1138
Un-P1-C5-T2 RPC card to CEC enclosure serial cable (RPC-2 to upper CEC) 99Y1139
RPC card to CEC enclosure serial cable (RPC-2 to lower CEC) 99Y1140
Un-P1-C8-T1 PCI cable, Models 961, 96E See Section-2 PCIe cables for two, four, and eight I/O enclosures.
Un-P1-C8-T2 PCI cable, Models 961, 96E See Section-2 PCIe cables for two, four, and eight I/O enclosures.
Un-P1-C8-T3 PCI cable, Models 961, 96E See Section-2 PCIe cables for two, four, and eight I/O enclosures.
Un-P1-T1 Not used
Un-P1-T2 Not used
Un-P1-T3 SPCN cable See Section-2 PCIe cables for two, four, and eight I/O enclosures.
Un-P1-T4 SPCN cable See Section-2 PCIe cables for two, four, and eight I/O enclosures.
Un-P1-T5 Ethernet cable (SW1 to upper CEC XC1 system backplane, black) 99Y0490
Ethernet cable (SW1 to lower CEC XC2 system backplane, black) 99Y0491
Un-P1-T6 Ethernet cable (SW2 to upper CEC XC1 system backplane, gray) 99Y0494
Ethernet cable (SW2 to lower CEC XC2 system backplane, gray) 99Y0495

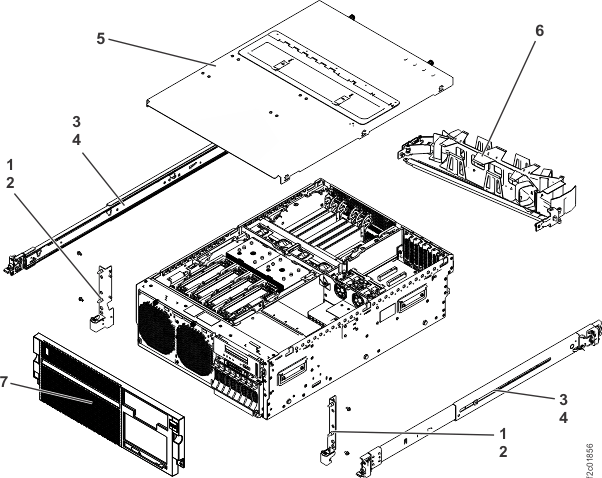

Figure 6. CEC enclosure sheet metal parts, part 1
CEC enclosure sheet metal parts, part 1
Table 7. CEC enclosure sheet metal parts, part 1 (Model 961)
Index Part name Part number
1 EIA bracket (left) 46K5096
1 EIA bracket (right) 46K5097
2 Attaching screw for EIA bracket 09P3744
3 Slide rail assembly 59Y4916
4 Attaching screw for slide rail assembly 49Y5312
5 Service access cover assembly 74Y9017
6 Cable management arm assembly 68Y7211
7 Front bezel (8205-E6C or 8205-E6D) 74Y5138

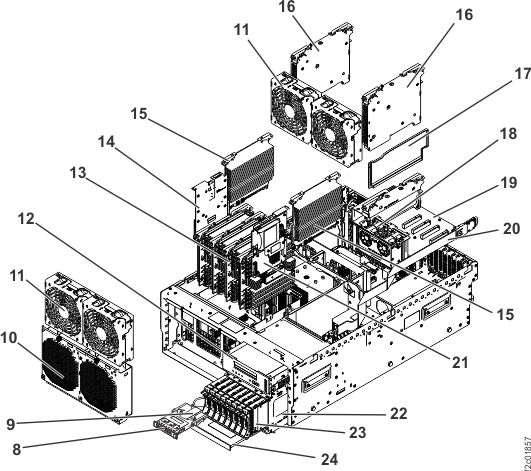

Figure 7. CEC enclosure sheet metal parts, part 2
CEC enclosure sheet metal parts, part 2
Table 8. CEC enclosure sheet metal parts, part 2 (Model 961)
Index Part name Part number
10 Fan cage assembly 74Y6301
17 Air divider 46K5415

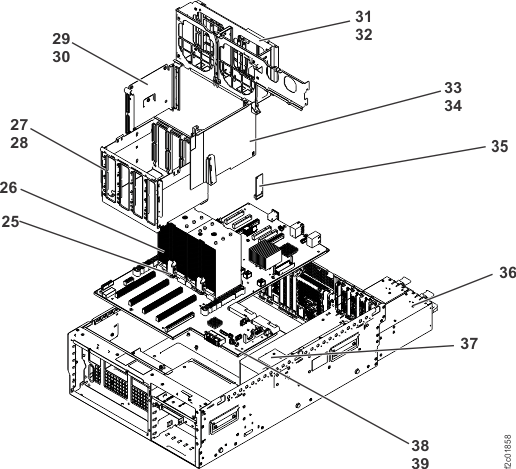

Figure 8. CEC enclosure sheet metal parts, part 3
CEC enclosure sheet metal parts, part 3
Table 9. CEC enclosure sheet metal parts, part 3 (Model 961)
Index Part name Part number
27 Memory card cage assembly
28 Attaching screw for memory card cage assembly
29 Processor VRM bracket
30 Attaching screw for processor VRM bracket
31 Middle fans bracket
32 Attaching screw for middle fans bracket
33 Processor VRM bracket
34 Attaching screw for processor VRM bracket
37 Interlock switch with cable 74Y6714
41 Attaching screw for system backplane

Section-1 SPCN cables for two, four, and eight I/O enclosures

Model 961 with two I/O enclosures

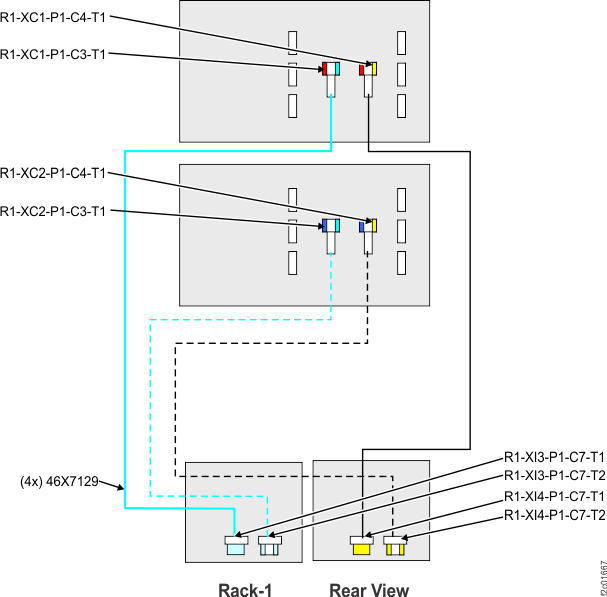

Figure 9. Model 961, two I/O enclosures
Model 961, two I/O enclosures
Table 10. SPCN Cabling (Model 961 with two I/O enclosures)
From To FRU P/N
R1-XC1-P1-T3 (1B3) R1-XI3-P1-C7-T3 98Y1943
(1B3) R1-XI3-P1-C7-T4 R1-XC1-P1-T4 98Y1943

R1-XC2-P1-T3 (1B4) R1-XI4-P1-C7-T3 98Y1942
(1B4) R1-XI4-P1-C7-T4 R1-XC2-P1-T4 98Y1942

Model 961 with four I/O enclosures

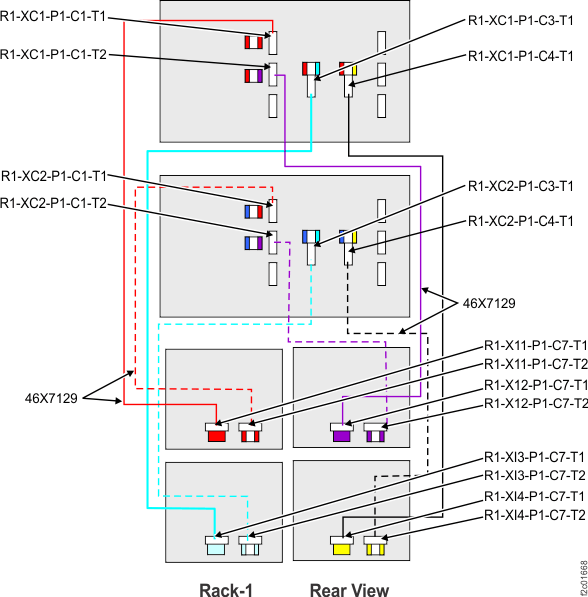

Figure 10. Model 961, four I/O enclosures
Model 961, four I/O enclosures
Table 11. SPCN Cabling (Model 961 with four I/O enclosures)
From To FRU P/N
R1-XC1-P1-T3 (1B1) R1-XI1-P1-C7-T3 22R5217
(1B1) R1-XI1-P1-C7-T4 (1B3) R1-XI3-P1-C7-T3 22R5216
(1B3) R1-XI3-P1-C7-T4 R1-XC1-P1-T4 98Y1943

R1-XC2-P1-T3 (1B2) R1-XI2-P1-C7-T3 98Y1941
(1B2) R1-XI2-P1-C7-T4 (1B4) R1-XI4-P1-C7-T3 45W1940
(1B4) R1-XI4-P1-C7-T4 R1-XC2-P1-T4 98Y1942

Model 961 with eight I/O enclosures

Figure 11. Model 961, eight I/O enclosures
Model 961, eight I/O enclosures
Table 12. SPCN Cabling (Model 961 with eight I/O enclosures)
From To FRU P/N
R1-XC1-P1-T3 (1B1) R1-XI1-P1-C7-T3 22R5217
(1B1) R1-XI1-P1-C7-T4 (1B3) R1-XI3-P1-C7-T3 22R5216
(1B3) R1-XI3-P1-C7-T4 (2B3) R2-XI3-P1-C7-T4 22R5218
(2B3) R2-XI3-P1-C7-T3 (2B1) R2-XI1-P1-C7-T4 45W1940
(2B1) R2-XI1-P1-C7-T3 R1-XC1-P1-T4 22R5218

R1-XC2-P1-T3 (1B2) R1-XI2-P1-C7-T3 98Y1941
(1B2) R1-XI2-P1-C7-T4 (1B4) R1-XI4-P1-C7-T3 45W1940
(1B4) R1-XI4-P1-C7-T4 (2B4) R2-XI4-P1-C7-T4 22R5218
(2B4) R2-XI4-P1-C7-T3 (2B2) R2-XI2-P1-C7-T4 22R5216
(2B2) R2-XI2-P1-C7-T3 R1-XC2-P1-T4 22R5218

Model 961 with eight I/O enclosures in single rack

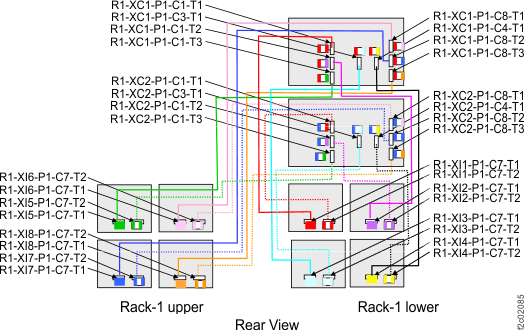

Figure 12. Model 961, eight I/O enclosures in single rack
Model 961, eight I/O enclosures in single rack
Table 13. SPCN Cabling (Model 961 with eight I/O enclosures in single rack)
From To FRU P/N
R1-XC1-P1-T3 (1B1) R1-XI1-P1-C7-T3 22R5217
(1B1) R1-XI1-P1-C7-T4 (1B3) R1-XI3-P1-C7-T3 45W1940
(1B3) R1-XI3-P1-C7-T4 (1B7) R1-XI7-P1-C7-T4 98Y1941
(1B7) R1-XI7-P1-C7-T3 (1B5) R1-XI5-P1-C7-T4 45W1940
(1B5) R1-XI5-P1-C7-T3 R1-XC1-P1-T4 22R5217

R1-XC2-P1-T3 (1B2) R1-XI2-P1-C7-T3 98Y1941
(1B2) R1-XI2-P1-C7-T4 (1B4) R1-XI4-P1-C7-T3 22R5216
(1B4) R1-XI4-P1-C7-T4 (1B8) R1-XI8-P1-C7-T4 98Y1941
(1B8) R1-XI8-P1-C7-T3 (1B6) R1-XI6-P1-C7-T4 22R5216
(1B6) R1-XI6-P1-C7-T3 R1-XC2-P1-T4 98Y1943

Section-2 PCIe cables for two, four, and eight I/O enclosures

Model 961 with two I/O enclosures

Figure 13. Model 961, two I/O enclosures
Model 961, two I/O enclosures
Table 14. PCIe Cabling (Model 961 with two I/O enclosures)
From CEC R1-XC1 To Rack 1 I/O Enclosure FRU P/N
R1-XC1-P1-C3-T1 (1B3) R1-XI3-P1-C7-T1 46X7129
R1-XC1-P1-C4-T1 (1B4) R1-XI4-P1-C7-T1 46X7129
From CEC R1-XC2 To Rack 1 I/O Enclosure FRU P/N
R1-XC2-P1-C3-T1 (1B3) R1-XI3-P1-C7-T2 46X7129
R1-XC2-P1-C4-T1 (1B4) R1-XI4-P1-C7-T2 46X7129

Model 961 with four I/O enclosures

Figure 14. Model 961, four I/O enclosures
Model 961, four I/O enclosures
Table 15. PCIe Cabling (Model 961 with four I/O enclosures)
From CEC R1-XC1 To Rack 1 I/O Enclosure Cable FRU P/N
R1-XC1-P1-C1-T1 (1B1) R1-XI1-P1-C7-T1 46X7129
R1-XC1-P1-C1-T2 (1B2) R1-XI2-P1-C7-T1 46X7129
R1-XC1-P1-C3-T1 (1B3) R1-XI3-P1-C7-T1 46X7129
R1-XC1-P1-C4-T1 (1B4) R1-XI4-P1-C7-T1 46X7129
From CEC R1-XC2 To Rack 1 I/O Enclosure FRU P/N
R1-XC2-P1-C1-T1 (1B1) R1-XI1-P1-C7-T2 46X7129
R1-XC2-P1-C1-T2 (1B2) R1-XI2-P1-C7-T2 46X7129
R1-XC2-P1-C3-T1 (1B3) R1-XI3-P1-C7-T2 46X7129
R1-XC2-P1-C4-T1 (1B4) R1-XI4-P1-C7-T2 46X7129

Model 961 with eight I/O enclosures

Figure 15. Model 961, eight I/O enclosures
Model 961, eight I/O enclosures
Table 16. PCIe Cabling (Model 961 with eight I/O enclosures)
From CEC R1-XC1 To Rack 1 I/O Enclosure Cable FRU P/N
R1-XC1-P1-C1-T1 (1B1) R1-XI1-P1-C7-T1 46X7129
R1-XC1-P1-C1-T2 (1B2) R1-XI2-P1-C7-T1 46X7129
R1-XC1-P1-C3-T1 (1B3) R1-XI3-P1-C7-T1 46X7129
R1-XC1-P1-C4-T1 (1B4) R1-XI4-P1-C7-T1 46X7129
From CEC R1-XC1 To Rack 2 I/O Enclosure Cable FRU P/N
R1-XC1-P1-C1-T3 (2B1) R2-XI1-P1-C7-T1 45W1939
R1-XC1-P1-C8-T1 (2B2) R2-XI2-P1-C7-T1 45W1939
R1-XC1-P1-C8-T2 (2B3) R2-XI3-P1-C7-T1 45W1939
R1-XC1-P1-C8-T3 (2B4) R2-XI4-P1-C7-T1 45W1939
From CEC R1-XC2 To Rack 1 I/O Enclosure Cable FRU P/N
R1-XC2-P1-C1-T1 (1B1) R1-XI1-P1-C7-T2 46X7129
R1-XC2-P1-C1-T2 (1B2) R1-XI2-P1-C7-T2 46X7129
R1-XC2-P1-C3-T1 (1B3) R1-XI3-P1-C7-T2 46X7129
R1-XC2-P1-C4-T1 (1B4) R1-XI4-P1-C7-T2 46X7129
From CEC R1-XC2 To Rack 2 I/O Enclosure Cable FRU P/N
R1-XC2-P1-C1-T3 (2B1) R2-XI1-P1-C7-T2 45W1939
R1-XC2-P1-C8-T1 (2B2) R2-XI2-P1-C7-T2 45W1939
R1-XC2-P1-C8-T2 (2B3) R2-XI3-P1-C7-T2 45W1939
R1-XC2-P1-C8-T3 (2B4) R2-XI4-P1-C7-T2 45W1939

Model 961 with eight I/O enclosures in single rack

Figure 16. Model 961, eight I/O enclosures in single rack
Model 961, eight I/O enclosures in single rack
Table 17. PCIe Cabling (Model 961 with eight I/O enclosures in single rack)
From CEC R1-XC1 To Rack 1 I/O Enclosure Cable FRU P/N
R1-XC1-P1-C1-T1 (1B1) R1-XI1-P1-C7-T1 46X7129
R1-XC1-P1-C1-T2 (1B2) R1-XI2-P1-C7-T1 46X7129
R1-XC1-P1-C3-T1 (1B3) R1-XI3-P1-C7-T1 46X7129
R1-XC1-P1-C4-T1 (1B4) R1-XI4-P1-C7-T1 46X7129
From CEC R1-XC1 To Rack 2 I/O Enclosure Cable FRU P/N
R1-XC1-P1-C1-T3 (1B5) R1-XI5-P1-C7-T1 46X7129
R1-XC1-P1-C8-T1 (1B6) R1-XI6-P1-C7-T1 46X7129
R1-XC1-P1-C8-T2 (1B7) R1-XI7-P1-C7-T1 46X7129
R1-XC1-P1-C8-T3 (1B8) R1-XI8-P1-C7-T1 46X7129
From CEC R1-XC2 To Rack 1 I/O Enclosure Cable FRU P/N
R1-XC2-P1-C1-T1 (1B1) R1-XI1-P1-C7-T2 46X7129
R1-XC2-P1-C1-T2 (1B2) R1-XI2-P1-C7-T2 46X7129
R1-XC2-P1-C3-T1 (1B3) R1-XI3-P1-C7-T2 46X7129
R1-XC2-P1-C4-T1 (1B4) R1-XI4-P1-C7-T2 46X7129
From CEC R1-XC2 To Rack 2 I/O Enclosure Cable FRU P/N
R1-XC2-P1-C1-T3 (1B5) R1-XI5-P1-C7-T2 46X7129
R1-XC2-P1-C8-T1 (1B6) R1-XI6-P1-C7-T2 46X7129
R1-XC2-P1-C8-T2 (1B7) R1-XI7-P1-C7-T2 46X7129
R1-XC2-P1-C8-T3 (1B8) R1-XI8-P1-C7-T2 46X7129
