Device adapter pair IDs – Models 982, 98F

Device adapter pair IDs identify a pair of storage enclosure RAID controllers.

For high-performance flash enclosures, a device adapter pair ID identifies the pair of storage enclosure RAID controllers and their associated interfaces to the I/O enclosures.

Note: For flash configurations with high-performance flash enclosures Gen2 (HPFE Gen2), see Figure 2.
Figure 1. Device adapter pair IDs for storage enclosures (Models 982, 98F) (rear view, racks 1 and 2)
Device adapter pair IDs for storage enclosures (Models 982, 98F) (rear view, racks 1 and 2)

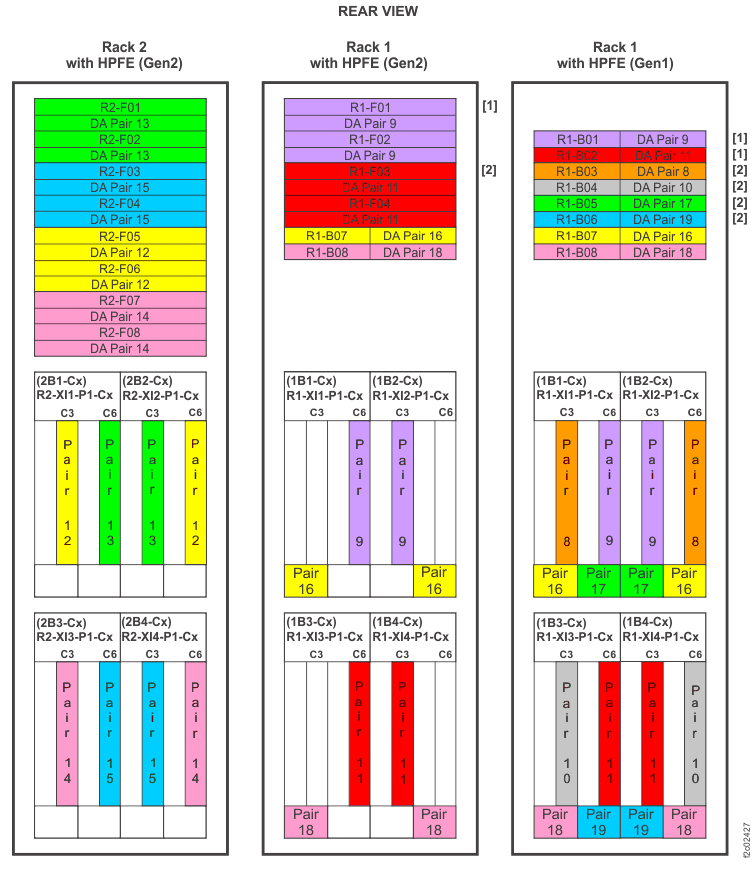

Figure 2. Device adapter pair IDs for flash enclosures (Models 982, 98F with HPFE Gen2) (rear view, racks 1 and 2)
Note: Rack-1 with HPFE (Gen1) is shown on the right. Rack-1 with mix of HPFE (Gen1) and HPFE Gen2, is shown at the center.
Device adapter pair IDs for flash enclosures (Models 982, 98F with HPFE Gen2) (rear view, racks 1 and 2)
Table 1. Device adapter pair ID notes for flash enclosures (Models 982, 98F with HPFE Gen2)
Index This HPFE Gen2 pair: Can be present when any of these HPFEs (Gen1) are present: Is not present when any of these HPFEs (Gen1) are present: Notes
1 R1-F01, R1-F02 R1-B03, R1-B04, R1-B05, R1-B06, R1-B07, R1-B08 R1-B01, R1-B02 Rack-1 can contain R1-B01 and B02, or the pair R1-F01 and R1-F02, but not both (space restriction).
2 R1-F03, R1-F04 R1-B07, R1-B08 R1-B01, R1-B02, R1-B03, R1-B04, R1-B05, R1-B06 Rack-1 can contain R1-B01 thru B06, or the pair R1-F03 and R1-F04, but not both (space restriction).
