Device adapter pair IDs – Models 981, 98E (three-phase power)

Device adapter pair IDs identify either the two device adapter cards in an I/O enclosure, or a pair of storage enclosure RAID controllers.

For FC-AL storage enclosures:
A device adapter pair ID identifies the two device adapter cards in the I/O enclosures. The device adapter cards provide redundancy for the FC-AL loops that connect to one or more storage enclosure pairs.
For high-performance flash enclosures:
A device adapter pair ID identifies the pair of storage enclosure RAID controllers and their associated interfaces to the I/O enclosures.
For high-performance flash enclosures Gen2 (HPFE Gen2)
A device adapter pair ID identifies the microbay pair (also known as flash RAID adapters) and their associated interfaces to the I/O enclosures.
Note: For flash configurations with HPFE Gen2, see Figure 3.

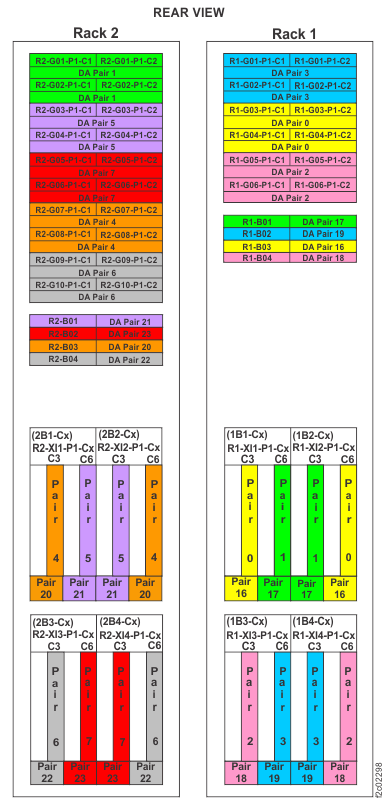

Figure 1. Device adapter pair IDs for storage enclosures (Models 981, 98E three-phase power) (rear view, racks 1 and 2)
Device adapter pair IDs for storage enclosures (Models 981, 98E three-phase power) (rear view, racks 1 and 2)

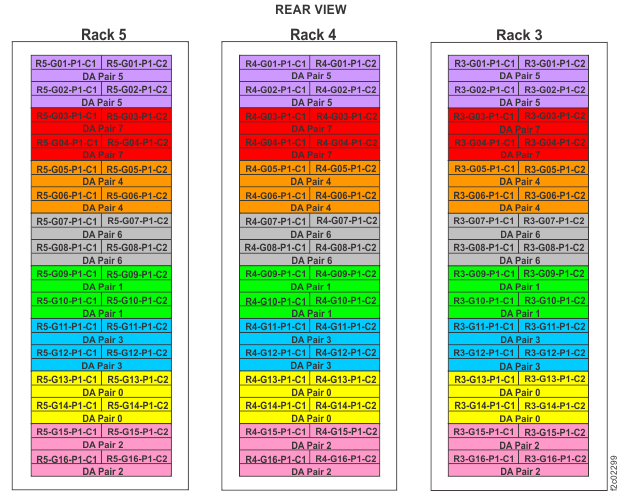

Figure 2. Device adapter pair IDs for storage enclosures (Models 981, 98E three-phase power) (rear view, racks 3, 4, 5)
Device adapter pair IDs for storage enclosures (Models 981, 98E three-phase power) (rear view, racks 3, 4, 5)

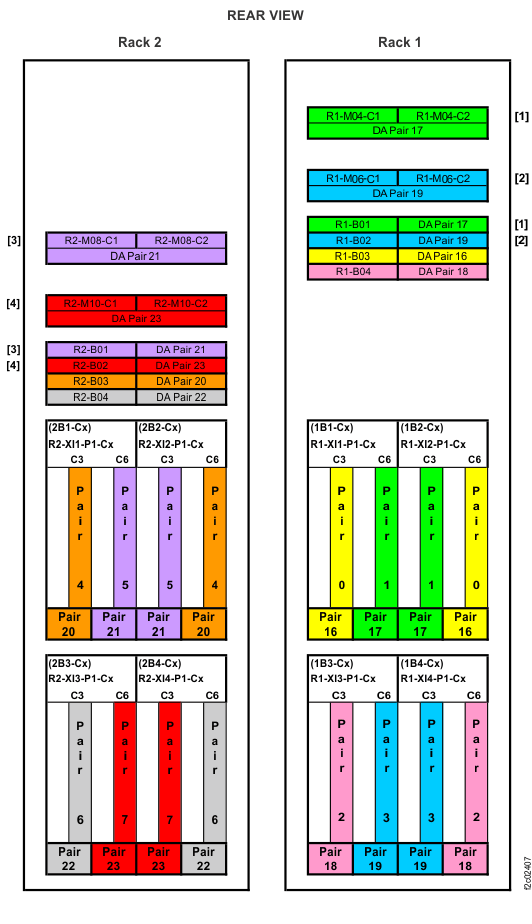

Figure 3. Device adapter pair IDs for flash enclosures (Models 981, 98E three-phase power with HPFE Gen2) (rear view, racks 1 and 2)
Note: Only flash configuration DA pairs are shown. HPFE Gen2 flash enclosure locations vary.
Device adapter pair IDs for flash enclosures (Models 981, 98E three-phase power with HPFE Gen2) (rear view, racks 1 and 2)
Table 1. Device adapter pair ID notes for flash enclosures (Models 981, 98E three-phase power with HPFE Gen2)
Index For this DA pair If this HPFE (Gen1) is present, a microbay pair cannot be present on the same DA pair: If this microbay pair is present, an HPFE (Gen1) cannot be present on the same DA pair: Notes
1 17 R1-B01 R1-M04 Rack-1 can contain R1-B01 or R1-M04, but not both.
2 19 R1-B02 R1-M06 Rack-1 can contain R1-B02 or R1-M06, but not both.
3 21 R2-B01 R2-M08 Rack-2 can contain R2-B01 or R2-M08, but not both.
4 23 R2-B02 R2-M10 Rack-2 can contain R2-B02 or R2-M10, but not both.
