Storage enclosure location codes (Models 961, 96E, PCIe flash enclosure, 30 SSD slots, 1.8 inches)

Table 1. Location codes for storage enclosure (30 SSD slots, 1.8 inches)

Part name	Reference
Storage enclosure midplane (front view)	Figure 1
Storage enclosure midplane (rear view)	Figure 2
Storage enclosure power supply	Figure 2
Storage enclosure RAID controller card	Figure 2
Storage enclosure solid state disk (SSD)	Figure 1
Storage enclosure solid state disk (SSD) dummy module	Figure 1

Note: Models 98x do not have the vertical enclosure option.

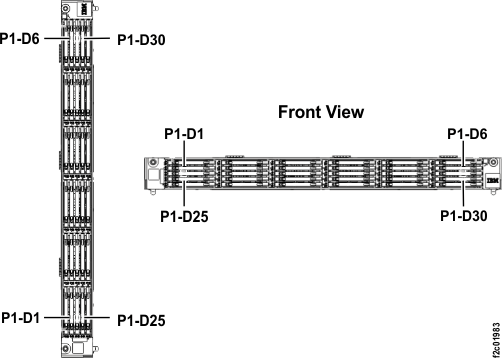

Table 2. Storage enclosure locations, 30 SSD slots, 1.8 inches (front view)

Location Code	Part Name
U2107.D03.<nnnnnnn>	Storage enclosure (30 SSD slots, 1.8 inch) Not a FRU
U2107.D03.<nnnnnnn>-P1	Storage enclosure midplane
U2107.D03.<nnnnnnn>-P1-Dx (x = 1-30)	Solid State Disk (SSD) Solid State Disk (SSD) dummy module

Note: Models 98x do not have the vertical enclosure option.

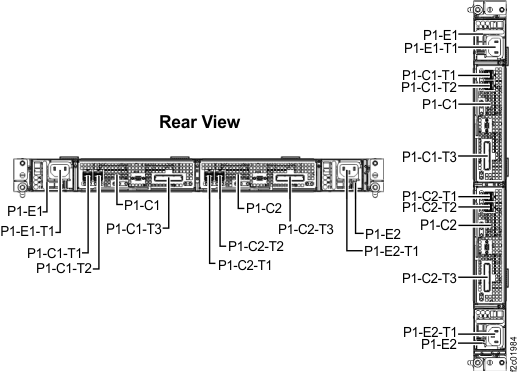

Table 3. Storage enclosure locations, 30 SSD slots, 1.8 inches (rear view)

Location code	Part name
U2107.D03.<nnnnnnn>	Storage enclosure (30 SSD slots, 1.8 inch) Not a FRU
U2107.D03.<nnnnnnn>-P1	Storage enclosure midplane
U2107.D03.<nnnnnnn>-P1-C1	Storage enclosure RAID controller card
U2107.D03.<nnnnnnn>-P1-C1-A1	Storage enclosure RAID controllerfan assembly
U2107.D03.<nnnnnnn>-P1-C1-T1	Not used
U2107.D03.<nnnnnnn>-P1-C1-T2	Not used
U2107.D03.<nnnnnnn>-P1-C1-T3	PCIe connector
U2107.D03.<nnnnnnn>-P1-C2	Storage enclosure RAID controller card
U2107.D03.<nnnnnnn>-P1-C2-A1	Storage enclosure RAID controllerfan assembly
U2107.D03.<nnnnnnn>-P1-C2-T1	Not used
U2107.D03.<nnnnnnn>-P1-C2-T2	Not used
U2107.D03.<nnnnnnn>-P1-C2-T3	PCIe connector
U2107.D03.<nnnnnnn>-P1-E1	Storage enclosure power supply
U2107.D03.<nnnnnnn>-P1-E1-T1	Power connector on power supply
U2107.D03.<nnnnnnn>-P1-E2	Storage enclosure power supply
U2107.D03.<nnnnnnn>-P1-E2-T1	Power connector on power supply
