CEC enclosure LED indicators (Models 941, 951)

This section contains FRUs that have LED indicators. Each listed assembly is shown with a description of its LEDs. While CEC enclosure LED indicators might indicate a failure, they should not be used as a starting point for a repair.

Table 1. List of CEC enclosure assemblies with LEDs
Assembly Reference
CEC enclosure (front) Figure 1
CEC enclosure (left rear) Figure 2
CEC enclosure (rear right) Figure 3

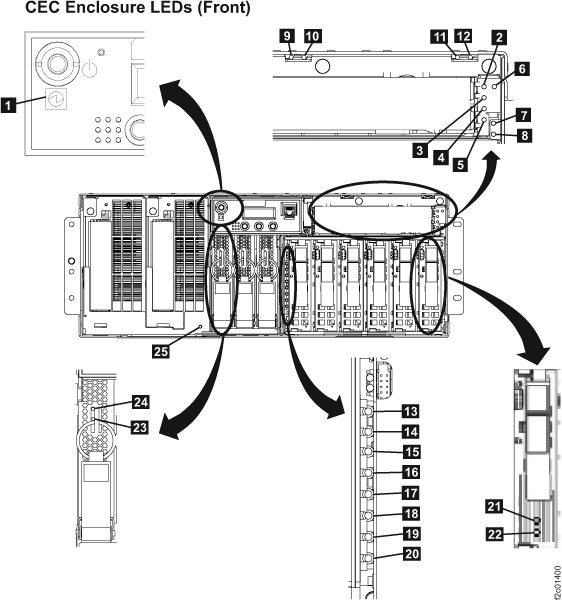

Figure 1. LED CEC enclosure front
LED CEC enclosure front
Table 2. Interpreting the LEDs on the CEC enclosure (front)
Index LED Function Location Color LED Off LED On LED Flash
1 Power for CEC enclosure MTMS green no input power enclosure on enclosure standby
2 Power for removable media upper slot P4-D1 green power off power on n/a
3 Identify for removable media upper slot P4-D1 amber normal action identify
4 Power for removable media lower slot P4-D2 green power off power on n/a
5 Identify for removable media lower slot P4-D2 amber normal action identify
6 Identify for media backplane assembly P4 amber normal n/a identify
7 Power for CEC enclosure P4 green power off power on n/a
8 Attention and identify for CEC enclosure   amber normal attention identify
9 Identify for CEC enclosure fan A1 amber normal n/a identify
10 Power for CEC enclosure fan A1 green power off power on n/a
11 Identify for CEC enclosure fan A2 amber normal n/a identify
12 Power for CEC enclosure fan A2 green power off power on n/a
13 Identify for CEC enclosure disk drive backplane assembly P3 amber normal n/a identify
14 (not used in storage CECs)
15 Identify for CEC enclosure disk drive P3-D1 amber normal action identify
16 Identify for CEC enclosure disk drive P3-D2 amber normal action identify
17 Identify for CEC enclosure disk drive P3-D3 amber normal action identify
18 Identify for CEC enclosure disk drive P3-D4 amber normal action identify
19 Identify for CEC enclosure disk drive P3-D5 amber normal action identify
20 Identify for CEC enclosure disk drive P3-D6 amber normal action identify
21 Activity for CEC enclosure disk drive P3-Dx green not active n/a activity
22 Identify for CEC enclosure disk drive P3-Dx amber normal action identify
23 Identify for CEC enclosure system processor voltage card P2-Cx amber normal n/a fast: identify
slow: com fail
24 Power for CEC enclosure system processor voltage card P2-Cx green standby off system on standby
25 Identify for CEC enclosure system processor backplane assembly P2 amber normal n/a identify

CEC enclosure (left rear)

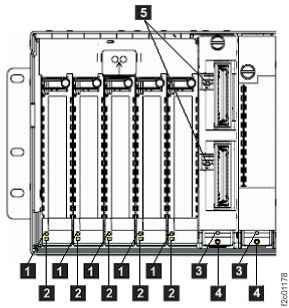

Figure 2. LED CEC enclosure left rear
LED CEC enclosure left rear
Table 3. Interpreting the LEDs on the CEC enclosure (left rear)
Index LED Function Location Color LED Off LED On LED Flash
1 Power for CEC enclosure PCI slots 1-5 P1-Cx green power off power on n/a
2 Identify for CEC enclosure PCI slots 1-5 P1-Cx amber normal n/a identify
3 Power for CEC enclosure GX slots 8-9 P1-Cx green power off power on n/a
4 Identify for CEC enclosure GX slots 8-9 P1-Cx amber normal n/a identify
5 Identify for RIO ports 1 and 2 P1-C8-Tx amber normal n/a identify

CEC enclosure power supply (rear right)

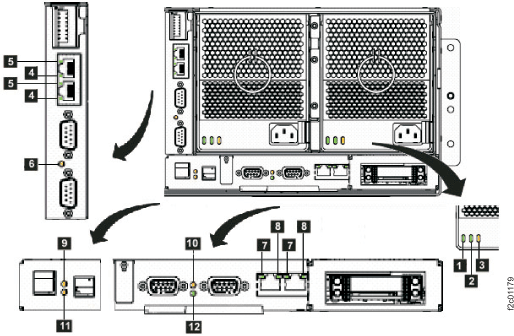

Figure 3. LED CEC enclosure right rear
LED CEC enclosure right rear
Note: Figure 3 shows a VPD pass-through card with two Ethernet ports. Some CEC enclosures have a VPD pass-through card with four Ethernet ports. The cards are functionally equivalent, and the LED definitions for Ethernet port link (index 4), Ethernet port activity (index 5), and CEC enclosure identify (index 6) remain the same.
Table 4. Interpreting the LEDs on the CEC enclosure (right rear)
Index LED Function Location Color LED Off LED On LED Flash
1 Input power for CEC enclosure power supply E1, E2 green no input input good n/a
2 Output power for CEC enclosure power supply E1, E2 green standby off output on standby
3 Identify for CEC enclosure power supply E1, E2 amber normal n/a fast: identify
slow: com fail
4 Link for Ethernet port P1-C10-T1,T2 green link bad link OK n/a
5 Activity for Ethernet port P1-C10-T1,T2 green no activity n/a activity
6 Identify for CEC enclosure VPD pass-through card P1-C10 amber normal n/a identify
7 Link for HMC Ethernet port P1-C11-T3,T4 green link bad link OK n/a
8 Activity for HMC Ethernet port P1-C11-T3,T4 bi-color no activity n/a green: activity
9 Attention and identify for CEC enclosure P1 amber normal attention identify
10 Identify for CEC enclosure service processor card P1-C11 amber normal n/a identify
11 Identify for CEC enclosure I/O backplane P1 amber normal n/a identify
12 Network P1-C11 green undefined undefined n/a
