MES and installation instructions location codes (Models 961, 96E)

Physical location codes are used in the MES/Install instructions. To determine the physical location code for a part, see the appropriate figure:
Rack See
Rack-1, 2, 3, 4
  • Storage enclosure (12 and 24 DDM slots)
  • I/O enclosure
 Figure 1 and Figure 2
Rack-1, 2, 3, 4 (business class)
  • Storage enclosure (12 and 24 DDM slots)
  • I/O enclosure
 Figure 3 and Figure 4
Rack-1, 2 (standard and business class)
  • Storage enclosure (30 SSD slots)
  • Storage enclosure (12 and 24 DDM slots)
  • I/O enclosure
 Figure 5and Figure 6
Rack-1 (DS8870 all flash)
  • Storage enclosure (30 SSD slots only)
  • I/O enclosure
 Figure 7 and Figure 8
Figure 1. Rack 1-4 storage enclosure and I/O enclosure location codes (front view)
Rack 1-4 storage enclosure location codes (front view)
Figure 2. Rack 1-4 storage enclosure and I/O location codes (rear view)
Rack 1-4 storage enclosure location codes (rear view)
Figure 3. Rack 1-4 storage enclosure and I/O location codes (Models 961, 96E; business class) (front view)
Rack 1-4 storage enclosure and I/O location codes (Front view of Models 961, 96E; cost optimized configuration)

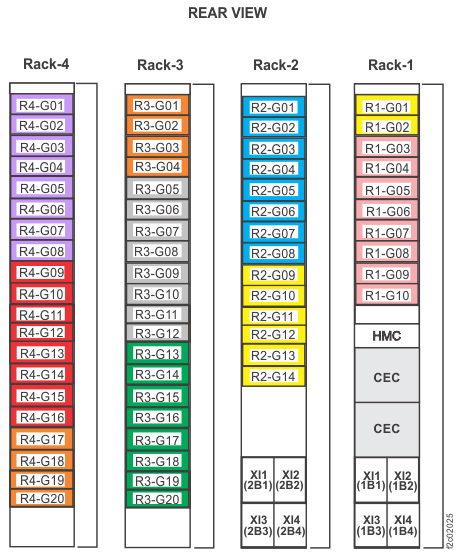

Figure 4. Rack 1-4 storage enclosure and I/O location codes (Models 961, 96E; business class) (rear view)
Rack 1-4 storage enclosure and I/O location codes (Rear view of Models 961, 96E; business class)

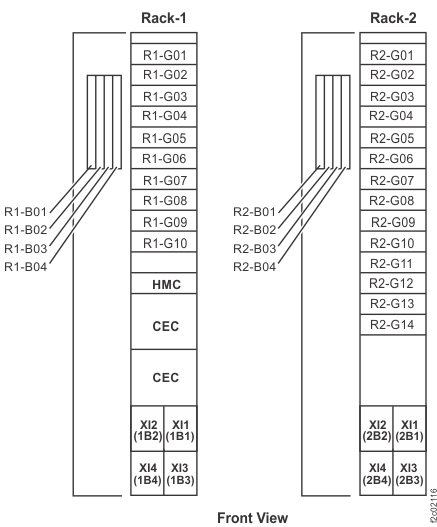

Figure 5. Rack 1-2 storage enclosure (30 SSD slots, 12 and 24 DDM slots) and I/O enclosure location codes (front view)
Rack 1-2 storage enclosure (30 SSD slots, 12 and 24 DDM slots) and I/O enclosure location codes (front view)
Figure 6. Rack 1-2 storage enclosure (30 SSD slots, 12 and 24 DDM slots) and I/O enclosure location codes (Models 960, 961) (rear view)
Rack 1-2 storage enclosure (30 SSD slots, 12 and 24 DDM slots) and I/O enclosure location codes (rear view)

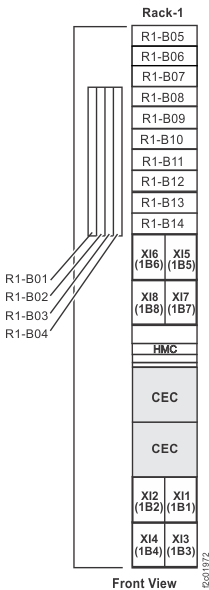

Figure 7. Rack 1 storage enclosure (30 SSD slots) and I/O enclosure location codes (DS8870 all flash) (front view)
Front view of Rack 1 storage enclosure (30 SSD slots) and I/O enclosure location codes for DS8870 all flash
Figure 8. Rack 1 storage enclosure (30 SSD slots) and I/O enclosure location codes (Model 961 DS8870 all flash) (rear view)
Rear view of Rack 1 storage enclosure (30 SSD slots) and I/O enclosure location codes for DS8870 all flash
