Model 941 with eight I/O enclosures

Use the point-to-point cabling diagram to route the PCIe cables in a Model 941.

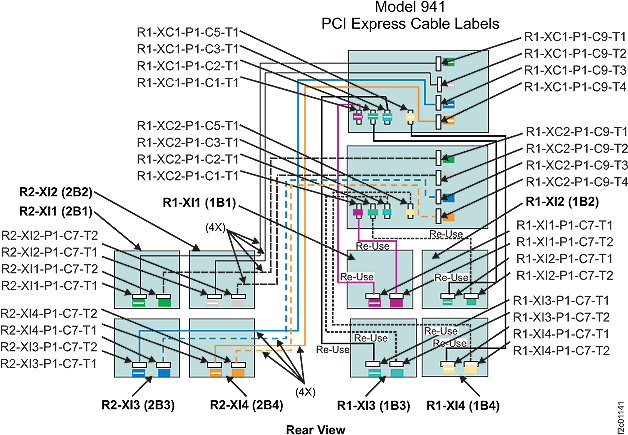

Figure 1. Model 941, eight I/O enclosures
Model 941, eight I/O enclosures
Table 1. PCIe Cabling (Model 941 with eight I/O enclosures)
From CEC R1-XC1 To Rack 1 I/O Enclosure FRU P/N
R1-XC1-P1-C1-T1 (1B1) R1-XI1-P1-C7-T1 45W1936
R1-XC1-P1-C2-T1 (1B2) R1-XI2-P1-C7-T1 45W1937
R1-XC1-P1-C3-T1 (1B3) R1-XI3-P1-C7-T1 45W1936
R1-XC1-P1-C5-T1 (1B4) R1-XI4-P1-C7-T1 45W1938
From CEC R1-XC1 To Rack 2I/O Enclosure FRU P/N
R1-XC1-P1-C9-T1 (2B1) R2-XI1-P1-C7-T1 45W1939
R1-XC1-P1-C9-T2 (2B2) R2-XI2-P1-C7-T1 45W1939
R1-XC1-P1-C9-T3 (2B3) R2-XI3-P1-C7-T1 45W1939
R1-XC1-P1-C9-T4 (2B4) R2-XI4-P1-C7-T1 45W1939
From CEC R1-XC2 To Rack 1 I/O Enclosure FRU P/N
R1-XC2-P1-C1-T1 (1B1) R1-XI1-P1-C7-T2 45W1935
R1-XC2-P1-C2-T1 (1B2) R1-XI2-P1-C7-T2 45W1936
R1-XC2-P1-C3-T1 (1B3) R1-XI3-P1-C7-T2 45W1936
R1-XC2-P1-C5-T1 (1B4) R1-XI4-P1-C7-T2 45W1937
From CEC R1-XC2 To Rack 2 I/O Enclosure FRU P/N
R1-XC2-P1-C9-T1 (2B1) R2-XI1-P1-C7-T2 45W1939
R1-XC2-P1-C9-T2 (2B2) R2-XI2-P1-C7-T2 45W1939
R1-XC2-P1-C9-T3 (2B3) R2-XI3-P1-C7-T2 45W1939
R1-XC2-P1-C9-T4 (2B4) R2-XI4-P1-C7-T2 45W1939
