Storage enclosure, 30 SSD slots, 1.8 inch

Use the point-to-point cabling diagrams below to route the storage enclosure PCIe cables on a Model 961.

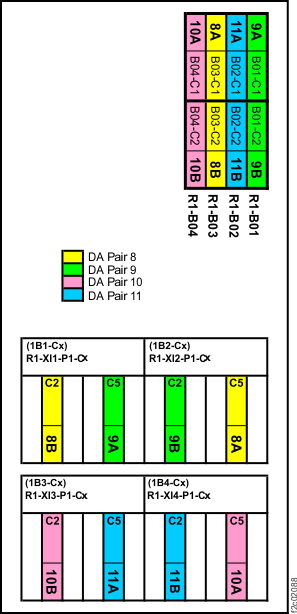

Figure 1. PCIe cable connections (standard configuration, Rack-1, rear) (Models 961/96E)

Figure 2. PCIe cable connections (standard configuration, Rack-2, rear) (Models 961/96E)

Table 1. Storage enclosure PCIe cabling matrix - standard or business class configuration, Rack-1 and Rack-2 (Models 961, 96E)
From: PCIe storage interface card	DA Pair (link)	To: RAID controller card	CCIN¹	FRU P/N (FRU kit includes PCIe storage interface card and storage enclosure PCIe cable)
R1-XI3-P1-C2-T1	10B	R1-B04-P1-C2-T3	HOCA	98Y4437
R1-XI4-P1-C5-T1	10A	R1-B04-P1-C1-T3	HOCA	98Y4437
R1-XI1-P1-C2-T1	8B	R1-B03-P1-C2-T3	HOCA	98Y4437
R1-XI2-P1-C5-T1	8A	R1-B03-P1-C1-T3	HOCA	98Y4437
R1-XI3-P1-C5-T1	11A	R1-B02-P1-C1-T3	HOCA	98Y4437
R1-XI4-P1-C2-T1	11B	R1-B02-P1-C2-T3	HOCA	98Y4437
R1-XI1-P1-C5-T1	9A	R1-B01-P1-C1-T3	HOCA	98Y4437
R1-XI2-P1-C2-T1	9B	R1-B01-P1-C2-T3	HOCA	98Y4437
R2-XI3-P1-C2-T1	14B	R2-B04-P1-C2-T3	HOCA	98Y4437
R2-XI4-P1-C5-T1	14A	R2-B04-P1-C1-T3	HOCA	98Y4437
R2-XI1-P1-C2-T1	12B	R2-B03-P1-C2-T3	HOCA	98Y4437
R2-XI2-P1-C5-T1	12A	R2-B03-P1-C1-T3	HOCA	98Y4437
R2-XI3-P1-C5-T1	15A	R2-B02-P1-C1-T3	HOCA	98Y4437
R2-XI4-P1-C2-T1	15B	R2-B02-P1-C2-T3	HOCA	98Y4437
R2-XI1-P1-C5-T1	13A	R2-B01-P1-C1-T3	HOCA	98Y4437
R2-XI2-P1-C2-T1	13B	R2-B01-P1-C2-T3	HOCA	98Y4437
Notes: Important: read this entire paragraph as there are exceptions to what part number to order. The custom card identification number (CCIN) identifies the physical features and logical behavior of a part. If two parts appear physically identical but have different CCINs, they are not interchangeable unless stated elsewhere in the maintenance package or by the next level of support. If two parts have different part numbers and yet have the same CCIN, they are interchangeable. When you order a part number (P/N) reported in a serviceable event or call home record, check if the parts ordering system has a conditional substitute for DS8000 series.

Figure 3. PCIe cable connections (DS8870 all-flash, Rack-1, rear) (Model 961)

Table 2. Storage enclosure PCIe cabling matrix - DS8870 all-flash, Rack 1 (Model 961)
From: PCIe storage interface card	DA Pair (link)	To: RAID controller card	CCIN¹	FRU P/N (FRU kit includes PCIe storage interface card and storage enclosure PCIe cable)
R1-XI3-P1-C2-T1	10B	R1-B04-P1-C2-T3	HOCA	98Y4437
R1-XI4-P1-C5-T1	10A	R1-B04-P1-C1-T3	HOCA	98Y4437
R1-XI1-P1-C2-T1	8B	R1-B03-P1-C2-T3	HOCA	98Y4437
R1-XI2-P1-C5-T1	8A	R1-B03-P1-C1-T3	HOCA	98Y4437
R1-XI3-P1-C5-T1	11A	R1-B02-P1-C1-T3	HOCA	98Y4437
R1-XI4-P1-C2-T1	11B	R1-B02-P1-C2-T3	HOCA	98Y4437
R1-XI1-P1-C5-T1	9A	R1-B01-P1-C1-T3	HOCA	98Y4437
R1-XI2-P1-C2-T1	9B	R1-B01-P1-C2-T3	HOCA	98Y4437
R1-XI7-P1-C2-T1	14B	R1-B14-P1-C2-T3	HOCB	98Y5346
R1-XI8-P1-C5-T1	14A	R1-B14-P1-C1-T3	HOCB	98Y5346
R1-XI5-P1-C2-T1	12B	R1-B13-P1-C2-T3	HOCB	98Y5346
R1-XI6-P1-C5-T1	12A	R1-B13-P1-C1-T3	HOCB	98Y5346
R1-XI7-P1-C5-T1	15A	R1-B12-P1-C1-T3	HOCB	98Y5346
R1-XI8-P1-C2-T1	15B	R1-B12-P1-C2-T3	HOCB	98Y5346
R1-XI5-P1-C5-T1	13A	R1-B11-P1-C1-T3	HOCB	98Y5346
R1-XI6-P1-C2-T1	13B	R1-B11-P1-C2-T3	HOCB	98Y5346
Notes: Important: read this entire paragraph as there are exceptions to what part number to order. The custom card identification number (CCIN) identifies the physical features and logical behavior of a part. If two parts appear physically identical but have different CCINs, they are not interchangeable unless stated elsewhere in the maintenance package or by the next level of support. If two parts have different part numbers and yet have the same CCIN, they are interchangeable. When you order a part number (P/N) reported in a serviceable event or call home record, check if the parts ordering system has a conditional substitute for DS8000 series.
