PCN cables, Models 980, 984

Figure 1 and Table 1 show the point-to-point connections for the power control network (PCN) cables in Models 980, 984.
Figure 2 and Table 2 show the point-to-point connections for the power control network (PCN) cables in Model 984 all-flash.

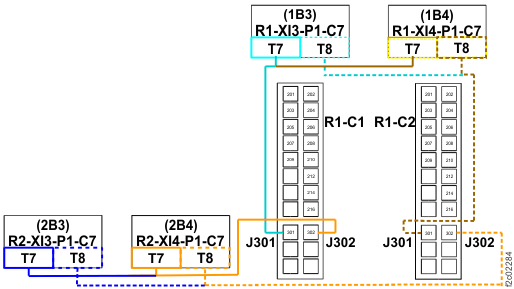

Figure 1. Power control network (PCN) cables, Models 980, 984
Power control network (PCN) cables, Model 980
Table 1. Power control network cabling, rack 1 (Models 980, 984) and rack 2 (Models 980, 984, 98B, 84E)
From To
(First enclosure) 		To
(Second enclosure) 		FRU part number
Rack 1 (Models 980, 984)
R1-C1-J301 (1B3)
R1-XI3-P1-C7-T7		 (1B4)
R1-XI4-P1-C7-T7		 00YM663
R1-C2-J301 (1B4)
R1-XI4-P1-C7-T8		 (1B3)
R1-XI3-P1-C7-T8		 00YM664
Rack 2 (Models 980, 984, 98B, 84E)
R1-C1-J302 (2B4)
R2-XI4-P1-C7-T7		 (2B3)
R2-XI3-P1-C7-T7		 00YM665
R1-C2-J302 (2B4)
R2-XI4-P1-C7-T8		 (2B3)
R2-XI3-P1-C7-T8		 00YM666

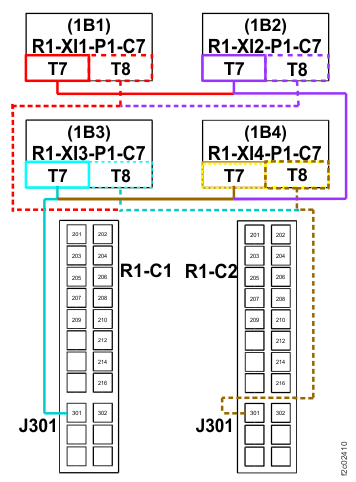

Figure 2. Power control network (PCN) cables, Model 984 all-flash
Power control network (PCN) cables, Model 984 all-flash
Table 2. Power control network cabling, rack 1 (Model 984 all-flash)
From To
(First enclosure) 		To
(Second enclosure) 		To
(Third enclosure) 		To
(Fourth enclosure) 		FRU part number
Rack 1 (Model 984 all-flash)
R1-C1-J301 (1B3)
R1-XI3-P1-C7-T7		 (1B4)
R1-XI4-P1-C7-T7		 (1B2)
R1-XI2-P1-C7-T7		 (1B1)
R1-XI1-P1-C7-T7		 02AM208
R1-C2-J301 (1B4)
R1-XI4-P1-C7-T8		 (1B3)
R1-XI3-P1-C7-T8		 (1B1)
R1-XI1-P1-C7-T8		 (1B2)
R1-XI2-P1-C7-T8		 02AM209
