PCN cables, Model 983

Figure 1 and Table 1 show the point-to-point connections for the power control network (PCN) cables.

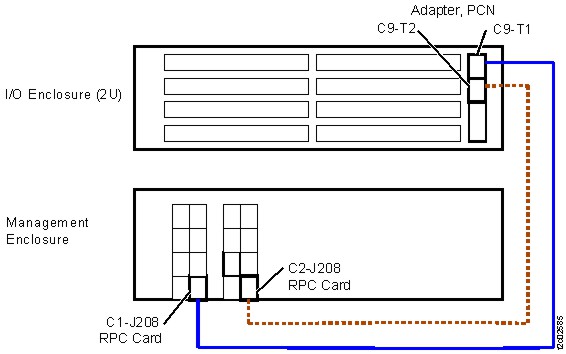

Figure 1. Power control network (PCN) cables, Model 983
PCN cable (Model 983)
Table 1. Power control network cabling, Model 983
From RPC card in management enclosure To I/O enclosure (2U) adapter (PCN) FRU part number
C1-J208 1G3-P1-C9-T1 02AN466
C2-J208 1G3-P1-C9-T2 02AN467
