Rack power and cooling part numbers, Models 961, 96E

This topic presents information on rack power and cooling part numbers for Models 961, 96E.

Use Table 1 as a directory for rack power and cooling parts.
Note: The following part numbers are the most recent for this version of the Parts Catalog. Your storage facility or serviceable event FRU list might contain an older or newer part number. The parts-ordering system recognizes all valid part numbers and automatically substitutes an available part number as needed.
Table 1. Start here, rack power and cooling (Models 961, 96E)
Part name Figure
Cables, DC-UPS battery service module (BSM) set Figure 1
Cables, DC-UPS DC supply unit (DSU) Figure 7
Cables, power distribution units (PDU) Figure 12, Figure 13
Cables, rack identity card Figure 8
Cable, rack identity card to operator panel LED assembly Figure 10
Cables, RPC card Figure 11
Cables, UEPO switch and cable assembly Figure 9
DC-UPS battery service module (BSM) set Figure 1
DC-UPS DC supply unit (DSU) Figure 2
DC-UPS fan assembly Figure 2
Mainline power cable Table 9
Local remote switch card Figure 4
Power distribution unit (PDU) Figure 6
Rack identity card Figure 4
Rack operator panel LED assembly Figure 10
RPC card Figure 3
UEPO switch and cable assembly Figure 9
zSeries local remote switch card Figure 4
All other parts (Find the appropriate figure below)
Figure 1. Battery service module (BSM) set locations (front)
Battery service module (BSM) set locations (front)
Table 2. DC-UPS battery service module (BSM) set parts (Models 961, 96E)
Index Part name Part number
1 (N/A, not a FRU)
2 (N/A, not a FRU)
3 BSM set power and signal cable (included with BSM set)
4 DC-UPS battery service module (BSM) set (1 primary and 3 secondary modules)  98Y3997
5 DC-UPS battery service module (BSM) set screw (included with BSM set)
6 Front cover, DC-UPS battery service module (BSM) enclosure (1 per DC-UPS) 98Y1611
6 Filler panel, DC-UPS battery service module (BSM) set (1 per empty BSM set location) 98Y5310
Figure 2. DC-UPS DC supply unit (DSU)
DC-UPS DC supply unit (DSU)
Table 3. DC-UPS DC supply unit (DSU) parts (Models 961, 96E)
Index Part name Part number
  DC-UPS DC supply unit (DSU)
- FRU includes upper and lower sections		 98Y3662
15 DC-UPS fan assembly 98Y1610
Figure 3. RPC card
RPC card
Table 4. RPC cards (Models 961, 96E)
Index Part name Part number
24 RPC card 98Y1604
Figure 4. Rack identity card and local remote card
Rack identity card and local remote card
Table 5. Rack identity card and local remote card (Models 961, 96E)
Index Part name Part number
28 Rack identity card 45W7372
29 Screw 54G2882
30 Card, local remote switch 95P1963
30 Card, local remote switch (top mount for DS8870 All Flash) 98Y5616
30 Card, zSeries local remote switch 98Y6397
30 Card, zSeries local remote switch (top mount for DS8870 All Flash) 98Y5424
31 Screw 54G2882
Figure 5. Rack front left labels
Rack front left labels
Table 6. Rack front left labels (Models 961, 96E)
Index Part name Part number
42 Label, agency 22R1790
43 Label, country of origin, Hungary 53P5888
43 Label, country of origin, US 44P3946
44 Label, IBM logo 97P2549
45 Label, manufacturing site, Hungary 22R1805
45 Label, manufacturing site, San Jose, CA 22R1804
46 Label, Nordic 97P5092

Parts of the power distribution units (PDUs)

Figure 6. Locations for power distribution units
Locations for power distribution units
Table 7. Power distribution units (Models 961, 96E)
Location Part name Part number
E21 - E26 Power distribution unit (PDU) 98Y2033

Cables for rack power and cooling parts

Figure 7. Location codes for the DC-UPS (Models 961, 96E) (rear)
Location codes for the DC-UPS (Models 961, 96E) (rear)
Table 8. Cables connecting to (E1) upper DC-UPS DC supply unit (DSU) (Models 961, 96E)
Index Part name Part number
Ex-J1-1
  • Determine the location code Ex-Jy-z of the CEC enclosure connector the cable connects to.
    Ex = E1 upper CEC enclosure or E2 lower CEC enclosure
    Jy-z = connector location code from Figure 8.
    Example = E1-J1-2
  • See Power distribution cables section below and find the table for the rack you are repairing.
  • In that table, use the "Connects to" column to find the location code you determined above.
 N/A
Ex-J1-2 N/A
Ex-J1-3 N/A
Ex-J2-1 N/A
Ex-J2-2 N/A
Ex-J2-3 N/A
Ex-J3-1 DC-UPS DSU to DSU power cable 45W9759
Ex-J3-2 DC-UPS DSU to DSU power cable 45W9760
Ex-J3-3 DC-UPS DSU to DSU power cable 45W9761
Ex-J4 Cable is part of DC-UPS DC fan assembly, see Table 3. N/A
Ex-J5 Cable is part of UEPO switch and cable assembly, see Table 11. N/A
Ex-J6 Cable, RPC-1 card to DC-UPS (Rack 1) 99Y0065
Cable, RPC-1 card to DC-UPS (expansion rack) 98Y3720
Ex-J7 Cable, RPC-2 card to DC-UPS (Rack 1) 99Y0066
Cable, RPC-2 card to DC-UPS (expansion rack) 98Y3721
Ex-J8 Not used (Rack 1) N/A
Cable, rack identity card C5-J1 to DC-UPS E1-J8 (expansion rack) 99Y0253
Cable, rack identity card C5-J2 to DC-UPS E2-J8 (expansion rack) 99Y0254
Ex-J9 Cable, DC-UPS DSU to DSU communication 99Y0948
Ex-J14 Mainline power cables, see Table 9. N/A
  Green and yellow ground wire (included with DC-UPS DC supply unit) N/A
Table 9. Mainline power cables (Models 961, 96E)
Index Part name Part number
6 Floor exit, mainline power cables
  Cable, three-phase low voltage (four-wire 3P+G), 200-240V, 60A, IEC 60309 4-pin customer connector
Long cable to upper DC-UPS, 5.4 meter (17.6 feet), feature code 1082, floor exit 		98Y3726
  Cable, three-phase low voltage (four-wire 3P+G), 200-240V, 60A, IEC 60309 4-pin customer connector
Short cable to lower DC-UPS, 4.8 meter (15.7 feet), feature code 1082, floor exit 		98Y3725

  Cable, three-phase high voltage (five-wire 3P+N+G), 380-415V, 32A, no customer connector provided
Long cable to upper DC-UPS, 5.2 meter (17.1 feet), feature code 1081, floor exit 		98Y3730
  Cable, three-phase high voltage (five-wire 3P+N+G), 380-415V, 32A, no customer connector provided
Short cable to lower DC-UPS, 4.7 meter (15.3 feet), feature code 1081, floor exit 		98Y3729

  Cable, three-phase high voltage (five-wire 3P+N+G), 380-415V, 30A, IEC 60309 5-pin customer connector
Long cable to upper DC-UPS, 5.2 meter (17.1 feet), feature code 1080, floor exit		 98Y4284
  Cable, three-phase high voltage (five-wire 3P+N+G), 380-415V, 30A, IEC 60309 5-pin customer connector
Short cable to lower DC-UPS, 4.7 meter (15.3 feet), feature code 1080, floor exit		 98Y4283

  Cable, single-phase, 200-240V, 60A, IEC 60309 3-pin customer connector
Long cable to upper DC-UPS, 5.2 meter (17.1 feet), feature code 1061, floor exit 		98Y3734
  Cable, single-phase, 200-240V, 60A, IEC 60309 3-pin customer connector
Short cable to lower DC-UPS, 4.7 meter (15.3 feet), feature code 1061, floor exit 		98Y3733

  Cable, single-phase, 200-240V, 63A, no customer connector provided
Long cable to upper DC-UPS, 5.2 meter (17.1 feet), feature code 1068, floor exit		 98Y3738
  Cable, single-phase, 200-240V, 63A, no customer connector provided
Short cable to lower DC-UPS, 4.7 meter (15.3 feet), feature code 1068, floor exit 		98Y3737

6 Top exit, mainline power cables
  Cable, three-phase low voltage (four-wire 3P+G), 200-240V, 60A, IEC 60309 4-pin customer connector
Short cable to upper DC-UPS, 3.3 meter (10.8 feet), feature code 1084, top exit		 98Y3728
  Cable, three-phase low voltage (four-wire 3P+G), 200-240V, 60A, IEC 60309 4-pin customer connector
Long cable to lower DC-UPS, 3.9 meter (12.6 feet), feature code 1084, top exit 		98Y3727

  Cable, three-phase high voltage (five-wire 3P+N+G), 380-415V, 32A, no customer connector provided
Short cable to upper DC-UPS, 3.3 meter (10.8 feet), feature code 1083, top exit 		98Y3732
  Cable, three-phase high voltage (five-wire 3P+N+G), 380-415V, 32A, no customer connector provided
Long cable to lower DC-UPS, 3.9 meter (12.6 feet), feature code 1083, top exit 		98Y3731

  Cable, three-phase high voltage (five-wire 3P+N+G), 380-415V, 32A, no customer connector provided
Short cable to upper DC-UPS, 4.7 meter (15.4 feet), RPQ 8S1326, top exit 		98Y5411
  Cable, three-phase high voltage (five-wire 3P+N+G), 380-415V, 32A, no customer connector provided
Long cable to lower DC-UPS, 5.2 meter (17.1 feet), RPQ 8S1326, top exit 		98Y5410

  Cable, three-phase high voltage (five-wire 3P+N+G), 380-415V, 30A, IEC 60309 5-pin customer connector
Short cable to upper DC-UPS, 3.3 meter (10.8 feet), feature code 1085, top exit		 98Y4286
  Cable, three-phase high voltage (five-wire 3P+N+G), 380-415V, 30A, IEC 60309 5-pin customer connector
Long cable to lower DC-UPS, 3.9 meter (12.6 feet), feature code 1085, top exit		 98Y4285

  Cable, single-phase, 200-240V, 60A, IEC 60309 3-pin customer connector
Short cable to upper DC-UPS, 3.3 meter (10.8 feet), feature code 1072, top exit		 98Y3736
  Cable, single-phase, 200-240V, 60A, IEC 60309 3-pin customer connector
Long cable to lower DC-UPS, 3.9 meter (12.6 feet), feature code 1072, top exit 		98Y3735

  Cable, single-phase, 200-240V, 63A, no customer connector provided
Short cable to upper DC-UPS, 3.3 meter (10.8 feet), feature code 1073, top exit		 98Y3740
  Cable, single-phase, 200-240V, 63A, no customer connector provided
Short cable to lower DC-UPS, 3.9 meter (12.6 feet), feature code 1073, top exit		 98Y3739
Figure 8. Cables for the rack identity card and the local remote switch card
Cables for the rack identity card and the local remote switch card
Table 10. Cables for the rack identity card and the local remote switch card (Models 961, 96E)
Index Part name Part number
3 Cable, rack identity card C5-J1 to RPC card C1-J1 (Rack 1) 98Y1731
4 Cable, rack identity card C5-J2 to RPC card C2-J1 (Rack 1) 98Y1732
3 Cable, rack identity card C5-J1 to DC-UPS E1-J8 (expansion rack) 99Y0253
4 Cable, rack identity card C5-J2 to DC-UPS E2-J8 (expansion rack) 99Y0254
5 Cable, rack identity card C5-J3 to rack front door LED assembly 45W6123
1 Cable, local remote switch card C6-J5 to-RPC card C1-P204 22R6141
2 Cable, local remote switch card C6-J6 to-RPC card C2-P204 98Y2413
Figure 9. UEPO switch
UEPO switch
Table 11. Cables for the rack operator panel UEPO switch (Models 961, 96E)
Index Part name Part number
1 UEPO switch and cable assembly 99Y0064
  Screw tbd

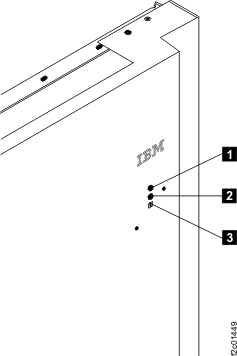

Figure 10. Rack operator panel LEDs on upper right of rack front cover
Rack operator panel LEDs on upper right of rack front cover
Table 12. Rack operator panel LEDs on upper right of rack front cover (Models 961, 96E)
Index Part name Part number
1 Operator panel LED assembly 45W3107
  Cable, rack identity card C5-J3 to rack front door LED assembly 45W6123
  Screw tbd
Figure 11. Location codes for the RPC cards (Model 961)
Location codes for the RPC cards (Model 961)
Table 13. Cables for RPC cards (Models 961, 96E)
Index Part name Part number
C1-J1 Cable, RPC-1 card C1-J1 -to- rack identity card C5-J1 98Y1731
C1-J4 Cable, RPC-1 card to fans A1/A3 to PJA E41 (see Table 20, Table 22) 98Y2538
C1-J201 Cable, RPC-1 card to DC-UPS (Rack 1) 99Y0065
C1-J202 not used N/A
C1-J203 Cable, RPC-1 card to DC-UPS (expansion rack) 98Y3720
C1-J204 Cable, local remote switch card C6-J5 to RPC-1 card C1-P204 22R6141
C1-J205 Cable, RPC-1 card to DC-UPS (expansion rack) 98Y3720
C1-J206 Cable, customer remote rack power control (optional cable) contact next level of support
C1-J207 Cable, RPC-1 card to DC-UPS (expansion rack) 98Y3720
C1-J208 Cable, RPC card -to- RPC card 99Y1136
C1-J209 not used N/A
C1-J210 Cable, RPC-1 card to CEC enclosure 1 (upper) I2C 99Y0898
C1-J211 not used N/A
C1-J212 Cable, RPC-1 card to CEC enclosure 1 (upper) RS-485 serial 99Y1137
C1-J213 not used N/A
C1-J214 Cable, RPC-1 card to CEC enclosure 2 (lower) I2C 99Y0900
C1-J215 not used N/A
C1-J216 Cable, RPC-1 card to CEC enclosure 2 (lower) RS-485 serial 99Y1138
C1-J301 not used N/A
C1-J302 not used N/A
C1-J303 not used N/A
C1-J304 not used N/A

C2-J1 Cable, RPC-2 card C2-J1 -to- rack identity card C5-J2 98Y1732
C2-J4 Cable, RPC-2 card to fans A2/A4 to PJA E42 (see Table 21, Table 22) 98Y2539
C2-J201 Cable, RPC-2 card to DC-UPS (Rack 1) 99Y0066
C2-J202 not used N/A
C2-J203 Cable, RPC-2 card to DC-UPS (expansion rack) 98Y3721
C2-J204 Cable, local remote switch card C6-J6 to RPC-2 card C2-P204 98Y2413
C2-J205 Cable, RPC-2 card to DC-UPS (expansion rack) 98Y3721
C2-J206 Cable, customer remote rack power control (optional cable) contact next level of support
C2-J207 Cable, RPC-2 card to DC-UPS (expansion rack) 98Y3721
C2-J208 Cable, RPC card -to- RPC card 99Y1136
C2-J209 not used N/A
C2-J210 Cable, RPC-2 card to CEC enclosure 1 (upper) I2C 99Y0902
C2-J211 not used N/A
C2-J212 Cable, RPC-2 card to CEC enclosure 1 (upper) RS-485 serial 99Y1139
C2-J213 not used N/A
C2-J214 Cable, RPC-2 card to CEC enclosure 2 (lower) I2C 99Y0904
C2-J215 not used N/A
C2-J216 Cable, RPC-2 card to CEC enclosure 2 (lower) RS-485 serial 99Y1140
C2-J301 not used N/A
C2-J302 not used N/A
C2-J303 not used N/A
C2-J304 not used N/A

Power distribution cables

Note: For P/N information for (IBM lab use only) racks, go to Power distribution cables, Models 961, 96E (early development - IBM lab use only).

Use the cabling diagram to route power distribution unit (PDU) cables in Models 961, 96E.

Figure 12. Locations for power distribution units
Locations for power distribution units
Figure 13. Locations for power distribution unit (PDU) connectors
Locations for power distribution unit (PDU) connectors
Table 14, Table 15, and Table 16 show power cables between the power distribution units (PDUs) and the DC uninterruptible power supplies (DC-UPSs).
Table 17, Table 18, and Table 19 show power cables between the PDUs and the CEC enclosure, I/O enclosure, HMC, Ethernet, and storage enclosure power supplies.
Table 20, Table 21, and Table 22 show power cables between the PDUs and the CEC enclosure, I/O enclosure, management console (20V), Ethernet switch and fan tray (12V), and storage enclosure power supplies.
Table 14. PDU to DC-UPS cabling - Rack 1 (Models 961, 96E)
PDU port Connects to Connection description P/N FRU/PN PDU group
Note: For further guidance on the connects to locations in this table, refer to Rack power and cooling location codes (Models 961, 96E).
E21-J9 E1-J1-3 DC-UPS E1 (upper), DDM phase 3 98Y2674 98Y2674 yellow
E21-J10 E1-J1-2 DC-UPS E1 (upper), DDM phase 2 98Y2675 98Y2675 yellow
E22-J9 E2-J1-3 DC-UPS E2 (lower), DDM phase 3 98Y2676 98Y2676 green
E22-J10 E2-J1-2 DC-UPS E2 (lower), DDM phase 2 98Y2677 98Y2677 green
E23-J9,
E24-J10 		E1-J1-1 DC-UPS E1 (upper), DDM phase 1 98Y2678 98Y2678 yellow
E23-J10,
E24-J9 		E2-J1-1 DC-UPS E2 (lower), DDM phase 1 98Y2679 98Y2679 green
E24-J9,
E23-J10 		E2-J1-1 DC-UPS E2 (lower), DDM phase 1 98Y2679 98Y2679 green
E24-J10,
E23-J9 		E1-J1-1 DC-UPS E1 (upper), DDM phase 1 98Y2678 98Y2678 yellow
E25-J9 E1-J2-2 DC-UPS E1 (upper), main phase 2 98Y2241 98Y2241 yellow
E25-J10 E1-J2-3 DC-UPS E1 (upper), main phase 3 98Y2242 98Y2242 yellow
E26-J9 E2-J2-2 DC-UPS E2 (lower), main phase 2 98Y2243 98Y2243 green
E26-J10 E2-J2-3 DC-UPS E2 (lower), main phase 3 98Y2244 98Y2244 green
Table 15. PDU to DC-UPS cabling - Rack 2 (Models 961, 96E)
PDU port Connects to Connection description P/N FRU/PN PDU group
Note: For further guidance on the connects to locations in this table, refer to Rack power and cooling location codes (Models 961, 96E).
E21-J9 E1-J1-3 DC-UPS E1 (upper), DDM phase 3 98Y2674 98Y2674 yellow
E21-J10,
E25-J9 		E1-J1-2 DC-UPS E1 (upper), DDM phase 2 98Y2680 98Y2680 yellow
E22-J9 E2-J1-3 DC-UPS E2 (lower), DDM phase 3 98Y2676 98Y2676 green
E22-J10,
E26-J9		 E2-J1-2 DC-UPS E2 (lower), DDM phase 2 98Y2681 98Y2681 green
E23-J9,
E24-J10 		E1-J1-1 DC-UPS E1 (upper), DDM phase 1 98Y2678 98Y2678 yellow
E23-J10,
E24-J9 		E2-J1-1 DC-UPS E2 (lower), DDM phase 1 98Y2679 98Y2679 green
E24-J9,
E23-J10 		E2-J1-1 DC-UPS E2 (lower), DDM phase 1 98Y2679 98Y2679 green
E24-J10,
E23-J9 		E1-J1-1 DC-UPS E1 (upper), DDM phase 1 98Y2678 98Y2678 yellow
E25-J9,
E21-J10 		E1-J1-2 DC-UPS E1 (upper), DDM phase 2 98Y2680 98Y2680 yellow
E25-J10 E1-J2-3 DC-UPS E1 (upper), main phase 3 98Y2242 98Y2242 yellow
E26-J9,
E22-J10 		E2-J1-2 DC-UPS E2 (lower), DDM phase 2 98Y2681 98Y2681 green
E26-J10 E2-J2-3 DC-UPS E2 (lower), main phase 3 98Y2244 98Y2244 green
Table 16. PDU to DC-UPS cabling - Racks 3 and 4 (Models 961, 96E)
PDU port Connects to Connection description P/N FRU/PN PDU group
Note: For further guidance on the connects to locations in this table, refer to Rack power and cooling location codes (Models 961, 96E).
E21-J9 E1-J1-3 DC-UPS E1 (upper), DDM phase 3 98Y2674 98Y2674 yellow
E21-J10,
E25-J9 		E1-J1-2 DC-UPS E1 (upper), DDM phase 2 98Y2680 98Y2680 yellow
E22-J9 E2-J1-3 DC-UPS E2 (lower), DDM phase 3 98Y2676 98Y2676 green
E22-J10,
E26-J9 		E2-J1-2 DC-UPS E2 (lower), DDM phase 2 98Y2681 98Y2681 green
E23-J9,
E24-J10 		E1-J1-1 DC-UPS E1 (upper), DDM phase 1 98Y2678 98Y2678 yellow
E23-J10,
E24-J9 		E2-J1-1 DC-UPS E2 (lower), DDM phase 1 98Y2679 98Y2679 green
E24-J9,
E23-J10 		E2-J1-1 DC-UPS E2 (lower), DDM phase 1 98Y2679 98Y2679 green
E24-J10,
E23-J9 		E1-J1-1 DC-UPS E1 (upper), DDM phase 1 98Y2678 98Y2678 yellow
E25-J9,
E21-J10 		E1-J1-2 DC-UPS E1 (upper), DDM phase 2 98Y2680 98Y2680 yellow
E25-J10 E1-J2-3 DC-UPS E1 (upper), main phase 3 98Y2242 98Y2242 yellow
E26-J9,
E22-J10 		E2-J1-2 DC-UPS E2 (lower), DDM phase 2 98Y2681 98Y2681 green
E26-J10 E2-J2-3 DC-UPS E2 (lower), main phase 3 98Y2244 98Y2244 green
Table 17. PDU to CEC, I/O, management console (20V), Ethernet switch and fan tray (12V), and storage enclosure cabling - Rack 1 (Models 961, 96E)
PDU port Connects to Connection description P/N FRU/PN PDU group
Note: For further guidance on the connects to locations in this table, refer to:
PDU E21
E21-J1 G01-E2 storage enclosure G01 PSU E2 (right) 99Y1367 98Y5589 yellow
E21-J2 G03-E2 storage enclosure G03 PSU E2 (right) 99Y1367 98Y5589 yellow
E21-J3   not used
E21-J4 B01-E2 storage enclosure B01 PSU E2 (lower) 99Y1367 98Y5589 yellow
E21-J5 G02-E2 storage enclosure G02 PSU E2 (right) 99Y1367 98Y5589 yellow
E21-J6 G04-E2 storage enclosure G04 PSU E2 (right) 99Y1367 98Y5589 yellow
E21-J7   not used
E21-J8 B02-E2 storage enclosure B02 PSU E2 (lower) 99Y1367 98Y5589 yellow
PDU E22
E22-J1 G01-E1 storage enclosure G01 PSU E1 (left) 99Y1368 98Y5590 green
E22-J2 G03-E1 storage enclosure G03 PSU E1 (left) 99Y1368 98Y5590 green
E22-J3   not used
E22-J4 B01-E1 storage enclosure B01 PSU E1 (upper) 99Y1368 98Y5590 green
E22-J5 G02-E1 storage enclosure G02 PSU E1 (left) 99Y1368 98Y5590 green
E22-J6 G04-E1 storage enclosure G04 PSU E1 (left) 99Y1368 98Y5590 green
E22-J7   not used
E22-J8 B02-E1 storage enclosure B02 PSU E1 (upper) 99Y1368 98Y5590 green
PDU E23
E23-J1 G05-E2 storage enclosure G05 PSU E2 (right) 99Y1367 98Y5589 yellow
E23-J2 G06-E2 storage enclosure G06 PSU E2 (right) 99Y1367 98Y5589 yellow
E23-J3 G07-E2 storage enclosure G07 PSU E2 (right) 99Y1367 98Y5589 yellow
E23-J4 B03-E2 storage enclosure B03 PSU E2 (lower) 99Y1367 98Y5589 yellow
E23-J5 G08-E1 storage enclosure G08 PSU E1 (left) 99Y1368 98Y5590 green
E23-J6 G09-E1 storage enclosure G09 PSU E1 (left) 99Y1368 98Y5590 green
E23-J7 G10-E1 storage enclosure G10 PSU E1 (left) 99Y1368 98Y5590 green
E23-J8 B04-E1 storage enclosure B04 PSU E1 (upper) 45W7927 98Y5591 green
PDU E24
E24-J1 G05-E1 storage enclosure G05 PSU E1 (left) 99Y1368 98Y5590 green
E24-J2 G06-E1 storage enclosure G06 PSU E1 (left) 99Y1368 98Y5590 green
E24-J3 G07-E1 storage enclosure G07 PSU E1 (left) 99Y1368 98Y5590 green
E24-J4 B03-E1 storage enclosure B03 PSU E1 (upper) 45W7927 98Y5591 green
E24-J5 G08-E2 storage enclosure G08 PSU E2 (right) 99Y1367 98Y5589 yellow
E24-J6 G09-E2 storage enclosure G09 PSU E2 (right) 99Y1367 98Y5589 yellow
E24-J7 G10-E2 storage enclosure G10 PSU E2 (right) 99Y1367 98Y5589 yellow
E24-J8 B04-E2 storage enclosure B04 PSU E2 (lower) 99Y1367 98Y5589 yellow
PDU E25
E25-J1 E31 laptop tray rear 20V power supply 98Y4175 98Y5593 yellow
E25-J2 XC1-E2 upper CEC, power supply E2 (right) 98Y2536 98Y5592 yellow
E25-J3 XI1-E1 front upper right I/O, power supply E1 (left) 45W7926 98Y5592 yellow
E25-J4 XI3-E1 front lower right I/O, power supply E1 (left) 98Y2537 98Y5592 yellow
E25-J5 E32, E33 upper 12V power supply pair 99Y1332 99Y1332 yellow
E25-J6 XC2-E2 lower CEC, power supply E2 (right) 98Y2537 98Y5592 yellow
E25-J7 XI2-E1 front upper left I/O, power supply E1 (left) 45W7925 98Y5592 yellow
E25-J8 XI4-E1 front lower left I/O, power supply E1 (left) 45W7925 98Y5592 yellow
PDU E26
E26-J1 E34 laptop tray front 20V power supply 98Y4175 98Y5593 green
E26-J2 XC1-E1 upper CEC, power supply E1 (left) 46X7489 98Y5591 green
E26-J3 XI1-E2 front upper right I/O, power supply E2 (right) 45W7927 98Y5591 green
E26-J4 XI3-E2 front lower right I/O, power supply E2 (right) 45W7927 98Y5591 green
E26-J5 E35, E36 lower 12V power supply pair 99Y1333 99Y1333 green
E26-J6 XC2-E1 lower CEC, power supply E1 (left) 98Y2547 98Y5591 green
E26-J7 XI2-E2 front upper left I/O, power supply E2 (right) 45W7924 98Y5591 green
E26-J8 XI4-E2 front lower left I/O, power supply E2 (right) 45W7924 98Y5591 green
Table 18. PDU to I/O and storage enclosure cabling - Rack 2 (Models 961, 96E)
PDU port Connects to Connection description P/N FRU/PN PDU group
Note: For further guidance on the connects to locations in this table, refer to:
PDU E21
E21-J1 G01-E2 storage enclosure G01 PSU E2 (right) 99Y1367 98Y5589 yellow
E21-J2   not used
E21-J3   not used
E21-J4 B01-E2 storage enclosure B01 PSU E2 (lower) 99Y1367 98Y5589 yellow
E21-J5 G02-E2 storage enclosure G02 PSU E2 (right) 99Y1367 98Y5589 yellow
E21-J6 G03-E2 storage enclosure G03 PSU E2 (right) 99Y1367 98Y5589 yellow
E21-J7 G05-E2 storage enclosure G05 PSU E2 (right) 99Y1367 98Y5589 yellow
E21-J8 G07-E2 storage enclosure G07 PSU E2 (right) 99Y1367 98Y5589 yellow
PDU E22
E22-J1 G01-E1 storage enclosure G01 PSU E1 (left) 99Y1368 98Y5590 green
E22-J2   not used
E22-J3   not used
E22-J4 B01-E1 storage enclosure B01 PSU E1 (upper) 99Y1368 98Y5590 green
E22-J5 G02-E1 storage enclosure G02 PSU E1 (left) 99Y1368 98Y5590 green
E22-J6 G03-E1 storage enclosure G03 PSU E1 (left) 99Y1368 98Y5590 green
E22-J7 G05-E1 storage enclosure G05 PSU E1 (left) 99Y1368 98Y5590 green
E22-J8 G07-E1 storage enclosure G07 PSU E1 (left) 99Y1368 98Y5590 green
PDU E23
E23-J1 G04-E2 storage enclosure G04 PSU E2 (right) 99Y1367 98Y5589 yellow
E23-J2 G06-E2 storage enclosure G06 PSU E2 (right) 99Y1367 98Y5589 yellow
E23-J3 G08-E2 storage enclosure G08 PSU E2 (right) 99Y1367 98Y5589 yellow
E23-J4 B03-E2 storage enclosure B03 PSU E2 (lower) 99Y1367 98Y5589 yellow
E23-J5 G09-E1 storage enclosure G09 PSU E1 (left) 99Y1368 98Y5590 green
E23-J6 G11-E1 storage enclosure G11 PSU E1 (left) 99Y1368 98Y5590 green
E23-J7 G13-E1 storage enclosure G13 PSU E1 (left) 99Y1368 98Y5590 green
E23-J8 B04-E1 storage enclosure B04 PSU E1 (upper) 99Y1368 98Y5590 green
PDU E24
E24-J1 G04-E1 storage enclosure G04 PSU E1 (left) 45W7924 98Y5591 green
E24-J2 G06-E1 storage enclosure G06 PSU E1 (left) 99Y1368 98Y5590 green
E24-J3 G08-E1 storage enclosure G08 PSU E1 (left) 99Y1368 98Y5590 green
E24-J4 B03-E1 storage enclosure B03 PSU E1 (upper) 45W7927 98Y5591 green
E24-J5 G09-E2 storage enclosure G09 PSU E2 (right) 99Y1367 98Y5589 yellow
E24-J6 G11-E2 storage enclosure G11 PSU E2 (right) 99Y1367 98Y5589 yellow
E24-J7 G13-E2 storage enclosure G13 PSU E2 (right) 99Y1367 98Y5589 yellow
E24-J8 B04-E2 storage enclosure B04 PSU E2 (lower) 99Y1367 98Y5589 yellow
PDU E25
E25-J1 G10-E2 storage enclosure G10 PSU E2 (right) 99Y1367 98Y5589 yellow
E25-J2 G12-E2 storage enclosure G12 PSU E2 (right) 99Y1367 98Y5589 yellow
E25-J3 G14-E2 storage enclosure G14 PSU E2 (right) 99Y1367 98Y5589 yellow
E25-J4 B02-E2 storage enclosure B02 PSU E2 (lower) 99Y1367 98Y5589 yellow
E25-J5 XI1-E1 front upper right I/O, power supply E1 (left) 45W7926 98Y5592 yellow
E25-J6 XI2-E1 front upper left I/O, power supply E1 (left) 45W7925 98Y5592 yellow
E25-J7 XI3-E1 front lower right I/O, power supply E1 (left) 98Y2537 98Y5592 yellow
E25-J8 XI4-E1 front lower left I/O, power supply E1 (left) 45W7925 98Y5592 yellow
PDU E26
E26-J1 G10-E1 storage enclosure G10 PSU E1 (left) 45W7924 98Y5591 green
E26-J2 G12-E1 storage enclosure G12 PSU E1 (left) 99Y1368 98Y5590 green
E26-J3 G14-E1 storage enclosure G14 PSU E1 (left) 99Y1368 98Y5590 green
E26-J4 B02-E1 storage enclosure B02 PSU E1 (upper) 98Y2547 98Y5591 green
E26-J5 XI1-E2 front upper right I/O, power supply E2 (right) 45W7927 98Y5591 green
E26-J6 XI2-E2 front upper left I/O, power supply E2 (right) 45W7924 98Y5591 green
E26-J7 XI3-E2 front lower right I/O, power supply E2 (right) 45W7927 98Y5591 green
E26-J8 XI4-E2 front lower left I/O, power supply E2 (right) 45W7924 98Y5591 green
Table 19. PDU to storage enclosure cabling - Racks 3 and 4 (Models 961, 96E)
PDU port Connects to Connection description P/N FRU P/N PDU group
Note: For further guidance on the connects to locations in Table 19, refer to Storage enclosure location codes (Models 951, 95E).
PDU E21
E21-J1 G01-E2 storage enclosure G01 PSU E2 (right) 99Y1367 98Y5589 yellow
E21-J2   not used
E21-J3   not used
E21-J4   not used
E21-J5 G02-E2 storage enclosure G02 PSU E2 (right) 99Y1367 98Y5589 yellow
E21-J6 G03-E2 storage enclosure G03 PSU E2 (right) 99Y1367 98Y5589 yellow
E21-J7 G05-E2 storage enclosure G05 PSU E2 (right) 99Y1367 98Y5589 yellow
E21-J8 G07-E2 storage enclosure G07 PSU E2 (right) 99Y1367 98Y5589 yellow
PDU E22
E22-J1 G01-E1 storage enclosure G01 PSU E1 (left) 99Y1368 98Y5590 green
E22-J2   not used
E22-J3   not used
E22-J4   not used
E22-J5 G02-E1 storage enclosure G02 PSU E1 (left) 99Y1368 98Y5590 green
E22-J6 G03-E1 storage enclosure G03 PSU E1 (left) 99Y1368 98Y5590 green
E22-J7 G05-E1 storage enclosure G05 PSU E1 (left) 99Y1368 98Y5590 green
E22-J8 G07-E1 storage enclosure G07 PSU E1 (left) 99Y1368 98Y5590 green
PDU E23
E23-J1 G04-E2 storage enclosure G04 PSU E2 (right) 99Y1367 98Y5589 yellow
E23-J2 G06-E2 storage enclosure G06 PSU E2 (right) 99Y1367 98Y5589 yellow
E23-J3 G08-E2 storage enclosure G08 PSU E2 (right) 99Y1367 98Y5589 yellow
E23-J4   not used
E23-J5 G09-E1 storage enclosure G09 PSU E1 (left) 99Y1368 98Y5590 green
E23-J6 G11-E1 storage enclosure G11 PSU E1 (left) 99Y1368 98Y5590 green
E23-J7 G13-E1 storage enclosure G13 PSU E1 (left) 99Y1368 98Y5590 green
E23-J8 G17-E1 storage enclosure G17 PSU E1 (left) 45W7927 98Y5591 green
PDU E24
E24-J1 G04-E1 storage enclosure G04 PSU E1 (left) 45W7924 98Y5591 green
E24-J2 G06-E1 storage enclosure G06 PSU E1 (left) 99Y1368 98Y5590 green
E24-J3 G08-E1 storage enclosure G08 PSU E1 (left) 99Y1368 98Y5590 green
E24-J4   not used
E24-J5 G09-E2 storage enclosure G09 PSU E2 (right) 99Y1367 98Y5589 yellow
E24-J6 G11-E2 storage enclosure G11 PSU E2 (right) 99Y1367 98Y5589 yellow
E24-J7 G13-E2 storage enclosure G13 PSU E2 (right) 99Y1367 98Y5589 yellow
E24-J8 G17-E2 storage enclosure G17 PSU E2 (right) 99Y1367 98Y5589 yellow
PDU E25
E25-J1 G10-E2 storage enclosure G10 PSU E2 (right) 99Y1367 98Y5589 yellow
E25-J2 G12-E2 storage enclosure G12 PSU E2 (right) 99Y1367 98Y5589 yellow
E25-J3 G14-E2 storage enclosure G14 PSU E2 (right) 99Y1367 98Y5589 yellow
E25-J4 G19-E2 storage enclosure G19 PSU E2 (right) 99Y1367 98Y5589 yellow
E25-J5 G15-E2 storage enclosure G15 PSU E2 (right) 99Y1367 98Y5589 yellow
E25-J6 G16-E2 storage enclosure G16 PSU E2 (right) 99Y1367 98Y5589 yellow
E25-J7 G18-E2 storage enclosure G18 PSU E2 (right) 99Y1367 98Y5589 yellow
E25-J8 G20-E2 storage enclosure G20 PSU E2 (right) 99Y1367 98Y5589 yellow
PDU E26
E26-J1 G10-E1 storage enclosure G10 PSU E1 (left) 45W7924 98Y5591 green
E26-J2 G12-E1 storage enclosure G12 PSU E1 (left) 99Y1368 98Y5590 green
E26-J3 G14-E1 storage enclosure G14 PSU E1 (left) 99Y1368 98Y5590 green
E26-J4 G19-E1 storage enclosure G19 PSU E1 (left) 99Y1368 98Y5590 green
E26-J5 G15-E1 storage enclosure G15 PSU E1 (left) 99Y1368 98Y5590 green
E26-J6 G16-E1 storage enclosure G16 PSU E1 (left) 99Y1368 98Y5590 green
E26-J7 G18-E1 storage enclosure G18 PSU E1 (left) 99Y1368 98Y5590 green
E26-J8 G20-E1 storage enclosure G20 PSU E1 (left) 99Y1368 98Y5590 green
Table 20. Power junction assembly (PJA) cabling, PJA1 (Models 961, 96E)
PJA port label PJA port Connects to Connection description P/N FRU P/N PDU group
Note: For further guidance on the connects to locations in Table 20, refer to Rack power and cooling location codes (Models 961, 96E).
fan 1/2 E41-J1 A1 power to fan 1 (fan 1 sense to RPC1) 98Y2538 98Y2538 yellow
fan 3/4 E41-J2 A3 power to fan 3 (fan 3 sense to RPC1) 98Y2538 98Y2538 yellow
12V in E41-J3 E32 upper left 12V power supply1   21R9561 yellow
Ethernet SW2 E41-J4 SW2 Y cable to Ethernet SW2 (gray) 99Y1032 99Y1032
12V in E41-J5 E33 upper right 12V power supply1   21R9561 yellow
Ethernet SW1 E41-J6 SW1 Y cable to Ethernet SW1 (black) 99Y1031 99Y1031
20V in E41-J7 E31 rear 20V power supply1   98Y3778 yellow
HMC E41-J8 HMC Y cable to HMC 99Y1033 99Y1033
cross E41-J9 E42-J9 cross-connect fan power 99Y1030 99Y1030

Note 1: PJA input cable is part of power supply.
Table 21. Power junction assembly (PJA) cabling, PJA2 (Models 961, 96E)
PJA port label PJA port Connects to Connection description P/N FRU P/N PDU group
Note: For further guidance on the connects to locations in Table 21, refer to Rack power and cooling location codes (Models 961, 96E).
fan 1/2 E42-J1 A2 power to fan 2 (fan 2 sense to RPC2) 98Y2539 98Y2539 green
fan 3/4 E42-J2 A4 power to fan 4 (fan 4 sense to RPC2) 98Y2539 98Y2539 green
12V in E42-J3 E35 lower left 12V power supply1   21R9561 green
Ethernet SW2 E42-J4 SW2 Y cable to Ethernet SW2 (gray) 99Y1032 99Y1032
12V in E42-J5 E36 lower right 12V power supply1   21R9561 green
Ethernet SW1 E42-J6 SW1 Y cable to Ethernet SW1 (black) 99Y1031 99Y1031
20V in E42-J7 E34 front 20V power supply1   98Y3778 green
HMC E42-J8 HMC Y cable to HMC 99Y1033 99Y1033
cross E42-J9 E41-J9 cross-connect fan power 99Y1030 99Y1030
Note 1: PJA input cable is part of power supply.
Table 22. Power junction assembly (PJA) cabling, multi-connector cable detail (Models 961, 96E)
From To To Connection description P/N FRU/PN Source
E41-J1 A1 R1-C1-J4 Single PJA to fan to RPC cable PJA E41 to fan 1 (A1) to RPC C1 - connections A 98Y2538 98Y2538 yellow
E41-J2 A3 Single PJA to fan to RPC cable PJA E41 to fan 3 (A3) to RPC C1 - connections B

E42-J1 A2 R1-C2-J4 Single PJA to fan to RPC cable PJA E42 to fan 2 (A2) to RPC C2 - connections A 98Y2539 98Y2539 green
E42-J2 A4 Single PJA to fan to RPC cable PJA E42 to fan 4 (A4) to RPC C2 - connections B

E41-J4 SW2 Ethernet SW2 power from PJA1 99Y1032 99Y1032 yellow
E42-J4 Ethernet SW2 power from PJA2 green

E41-J6 SW1 Ethernet SW1 power from PJA1 99Y1031 99Y1031 yellow
E42-J6 Ethernet SW1 power from PJA2 green

E41-J8 HMC HMC power from PJA1 99Y1033 99Y1033 yellow
E42-J8 HMC power from PJA2 green
