Model 951

Use the point-to-point cabling diagram to route RIO cables in a Model 951.

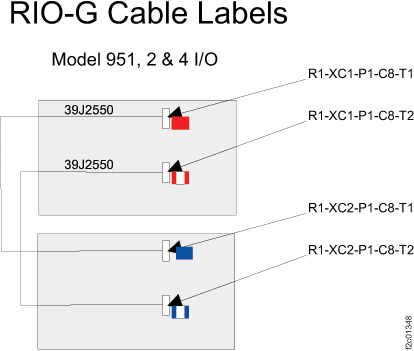

Figure 1. RIO cable labels
Model 951 RIO-G cable labels, two and four I/O enclosures
Table 1. RIO Cabling (Model 951)
From To FRU P/N
R1-XC1-P1-C8-T1 R1-XC2-P1-C8-T1 (0.6 meter)
39J25501
R1-XC1-P1-C8-T1 R1-XC2-P1-C8-T1 (1.2 meter)
44V51401
R1-XC1-P1-C8-T2 R1-XC2-P1-C8-T2 (0.6 meter)
39J25501
R1-XC1-P1-C8-T2 R1-XC2-P1-C8-T2 (1.2 meter)
44V51401
Notes:
  1. Rack-1 ships with a matched pair of 0.6 meter or 1.2 meter RIO cables. The 0.6 meter and 1.2 meter RIO cables must not be intermixed. You must visually inspect the existing RIO cable FRU P/N labels and then order the same FRU P/N.
