Small form factor management console part numbers, Models 98x

Part numbers for the management console are listed in this section.

Table 1. FRU part numbers for the small form factor management console, Model 98x (not Model 983)
Part name Part number
DVD-RW drive 98Y7693
DVD+R media, dual-layer 8.5 GB 01LL348
SDHC memory card, 4 GB 98Y3649
SDHC memory card, 8 GB 02AM511
SDHC memory card, 16 GB 02AR383
USB Ethernet adapter (RPQ only) 45D3566
USB Modem (RPQ only) 98Y3992
Small form factor management console (8100-LI7) (FRU assembly, management console with 120 GB SSD and mounting tray)
(Do not use this FRU to replace management consoles with 250 GB SSD.)		 98Y7556
Small form factor management console (8100-LI7) (FRU assembly, management console with 8 GB RAM, 250 GB SSD, and mounting tray)
(Do not use this FRU to replace management consoles with more than 8 GB RAM) 		02AM731
Small form factor management console (8100-LI7) (FRU assembly, management console with 16 GB RAM, 250 GB SSD, and mounting tray) 02AR436
Management console display and keyboard FRU kit 00YM819
Cable bundle FRU, MC1 to keyboard/monitor patch panel 00YM680
Cable bundle FRU, MC2 to keyboard/monitor patch panel 00YM681
Cable bundle FRU, MC1 to power (PJAs), Ethernet switches, modem (models 980, 981 single-phase, 984, 985 single-phase) 00YM682
Cable bundle FRU, MC2 to power (PJAs), Ethernet switches, modem (models 980, 981 single-phase, 984, 985 single-phase) 00YM683
Cable bundle FRU, MC1 to power (PJAs), Ethernet switches, modem (models 981 three-phase, 982, 986 three-phase, 988) 98Y8845
Cable bundle FRU, MC2 to power (PJAs), Ethernet switches, modem (models 981 three-phase, 982, 986 three-phase, 988) 98Y8846
Table 2. FRU part numbers for the small form factor management console, Model 983
Part name Part number
DVD-RW drive 98Y7693
DVD+R media, dual-layer 8.5 GB 01LL348
Management console display FRU kit (includes tray, monitor, power cord)
Note: Does not include keyboard.
 17P8487
Management console keyboard 00WV000
SDHC memory card, 8 GB 02AM511
SDHC memory card, 16 GB 02AR383
USB Ethernet adapter (RPQ only) 45D3566
Small form factor management console (8100-LI7) (FRU assembly, management console with 8 GB RAM, 250 GB SSD, and mounting tray)
(Do not use this FRU to replace management consoles with more than 8 GB RAM)
Note: This FRU ships with DS8880 series mounting tray. The tray is replaced with DS8882F mounting tray during parts exchange.
 02AM731
Small form factor management console (8100-LI7) (FRU assembly, management console with 16 GB RAM, 250 GB SSD, and mounting tray)
Note: This FRU ships with DS8880 series mounting tray. The tray is replaced with DS8882F mounting tray during parts exchange.
 02AR436

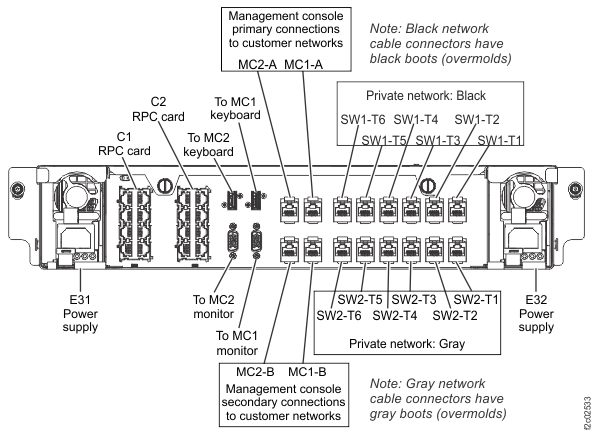

Figure 1. Locations codes of management enclosure, rear (Model 983)
Location codes, I/O enclosure (2U) adapter (PCIe, SAS device, zHyperLink)
Table 3. Cables for rear of management enclosure (Model 983)
Location Part name Part number
To MC1 keyboard (MC1-KYBD) USB cable 02AN267
To MC2 keyboard (MC2-KYBD) USB cable 02AN268
To MC1 monitor (MC1-VGA) VGA cable 02AN269
To MC2 monitor (MC2-VGA) VGA cable 02AN270
USB and VGA to LR1 or ZR1 KVM switch KVM switch cable to USB and VGA 02AN733
