Section-36, Cable bundle 3, connecting to the upper flash enclosure (I1-F03)

Procedure

  1. At the upper flash enclosure cable tie bar, locate the cable group for the lower flash enclosure I1-F03.
  2. Connect the power and SAS cables to the upper flash enclosure (I1-F03). See Section-36, Cable bundle 3, connecting to the upper flash enclosure (I1-F03).
    1. Secure the power cable behind the power supply retention bracket
    2. The SAS connector blue pull tabs must be down to connect the SAS cables to the flash enclosure.

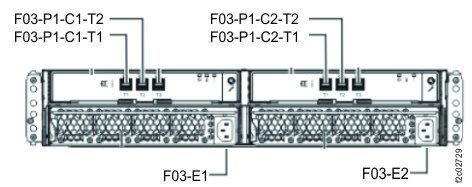

    Figure 1. Locations, upper flash enclosure (I1-F03)
    Locations, upper flash enclosure (I1-F03)
