Exchange the CEC enclosure internal fans

1. Use a replacement part with a valid DS8000® part number to ensure it has the proper firmware, VPD, or configuration to ensure it is compatible with the DS8000 service procedures. Attempting to use a generic server FRU might fail and require next level of support to recover.
2. All parts being removed must be marked or identified so they can be installed into their original locations.
   Note: Failure to do this can extend the service duration and may require next level of support assistance.
3. The management console keyboard can be moved between the operating and stowed position as needed to allow service clearance above the CEC enclosure.
4. Use the front and rear blue identify LEDs to determine the CEC enclosure to be repaired. Both blue LEDs should be lit.
   • CEC control panel blue identify LED as shown in Figure 1.
   • CEC enclosure rear blue identify LED as shown in Figure 2.

   Note: If both the front and rear CEC enclosure identify LEDs are not lit, use the location code listed in the serviceable event FRU list. See MAP1245 Finding FRUs by using location codes.





5. Verify that the CEC enclosure is in the power-off state. See Figure 3.
   1. At the rear of the CEC enclosure, view all CEC enclosure power supply DC LEDs.
   2. Are all DC (output) LEDs flashing?
      • Yes, continue with the next step.
      • No, do not continue with this FRU replacement. Go to MAP4841 CEC enclosure fails to power off during service processor repair (Models 961, 98x).



6. Attach the electrostatic discharge (ESD) wrist strap.
   Attention:

   • Attach an electrostatic discharge (ESD) wrist strap to an unpainted metal surface of your hardware to prevent the electrostatic discharge from damaging your hardware.
   • When using an ESD wrist strap, follow all electrical safety procedures. An ESD wrist strap is used for static control. It does not increase or decrease your risk of receiving electric shock when using or working on electrical equipment.
   • If you do not have an ESD wrist strap, just before removing the product from ESD packaging and installing or replacing hardware, touch an unpainted metal surface of the system for a minimum of 5 seconds.
7. Disconnect the power cords from the CEC with the DC (output) LEDs flashing. See Figure 4.
   Notes:

   • Ensure the power cords are correctly labeled.
   • The power supply LEDs might continue to flash for up to 20 seconds while internal power is discharged.
   • The power cord is fastened to the system using the hook-and-loop fastener . Unstrap the fastener to allow the enclosure to be placed in the service position.



8. Observe the CEC enclosure control panel green power button LED . See Figure 5.
   • If it is off, go to the next step.
   • If it is flashing, the CEC enclosure is still in the power-off state. DO NOT CONTINUE. Ensure that you have unplugged the power cables.



9. Remove the front cover.
   CAUTION:



   A hot surface nearby.
   1. Ensure that you have the electrostatic discharge (ESD) wrist strap attached. If not, attach it now.
   2. Place your fingers on the indentations and pull the latches located on both sides of the cover.
   3. Pull the cover away from the system.



Complete the following steps to remove the CEC enclosure internal fans.

1. Ensure that you have the electrostatic discharge (ESD) wrist strap attached. If not, attach it now.
2. Loosen, but do not remove the recessed shipping screws in the RAID assembly by using a 4 mm Allen wrench, as shown in Figure 7.



3. Turn the thumbscrews in the direction shown in Figure 8. Pull out the latches and remove the RAID assembly from the system, as shown in Figure 8.



4. Turn the RAID assembly upside down and place the assembly on a flat surface. See Figure 9.



5. Press down on the RAID assembly cover latches , then slide the cover in the direction shown in Figure 10. Lift the cover up and off the RAID assembly.



6. To remove an internal fan, complete the following steps:

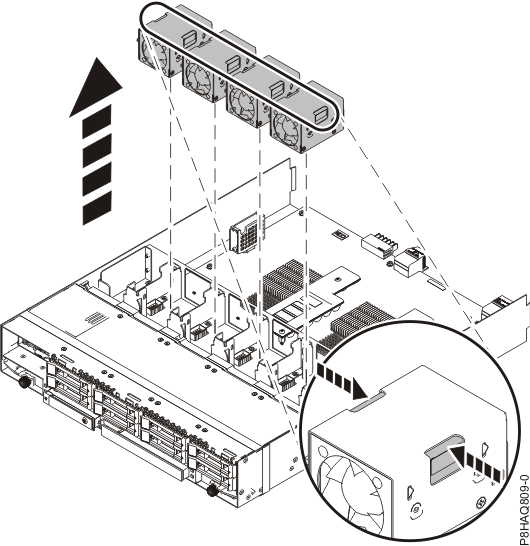

   1. Squeeze together the two blue touch points to release the fan from its slot, as shown in Figure 11.
   2. Lift the internal fan out of the cage by using the touch points.
   3. Place the internal fan on an electrostatic discharge (ESD) surface.



Complete the following steps to replace the CEC enclosure internal fans.

1. Ensure that you have the electrostatic discharge (ESD) wrist strap attached. If not, attach it now.
2. To replace an internal fan, complete the following steps:

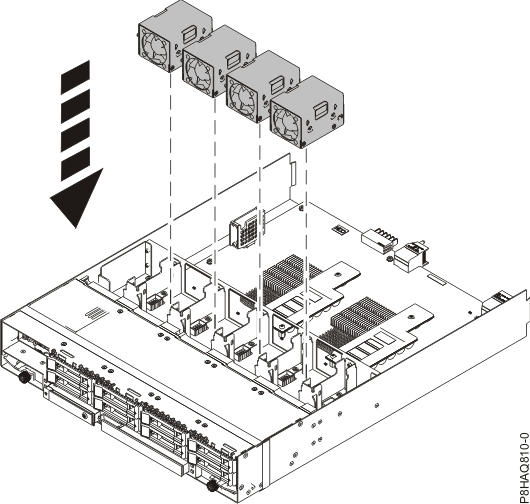

   1. Squeeze together the two blue touch points on the internal fan and lower the fan into the slot in the fan cage, as shown in Figure 12.
   2. Release the squeeze on the blue touch points and push down on the fan to seat and then lock the fan.



3. Slide the RAID assembly cover in the direction shown in Figure 13 until the latches lock in position.



4. Turn the RAID assembly over. See Figure 14.



5. Slide the RAID assembly into the system. Rotate the latches in and tighten the thumbscrews, as shown in Figure 15.
