I/O enclosure location codes (Models 951, 95E)

Use this section to find location codes for parts on the I/O enclosure. For part numbers, see I/O enclosure part numbers, Models 951, 95E.
Table 1. I/O enclosure locations (front)
Part Reference
I/O enclosure fan Figure 2
I/O enclosure power supply Figure 2
Table 2. I/O enclosure locations (rear)
Part Reference
PCIe/SPCN card Figure 4
I/O enclosure backplane assembly Figure 4
I/O enclosure device adapter card Figure 5
I/O enclosure Fibre Channel host card Figure 6

I/O enclosure locations (front)

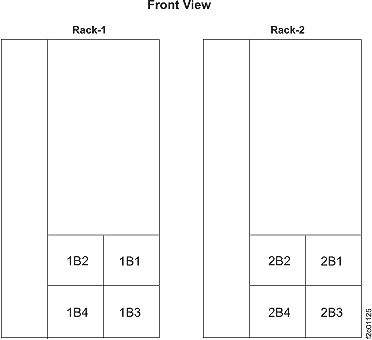

Figure 1. I/O enclosure locations in front of rack
I/O enclosure locations in front of rack

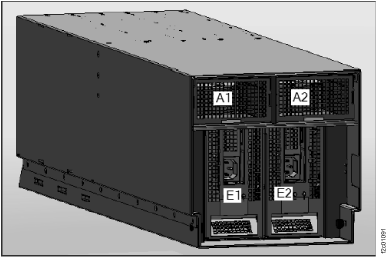

Figure 2. I/O enclosure locations (front)
I/O enclosure locations (front)
Table 3. Location codes for the I/O enclosure (front)
Location code Part name Connector
U1400.rBn.sssssss-A11 I/O enclosure fan
U1400.rBn.sssssss-A21 I/O enclosure fan
U1400.rBn.sssssss-E11 I/O enclosure power supply
U1400.rBn.sssssss-E21 I/O enclosure power supply
Note:
  1. rBn where: r = rack (1-2); Bn = I/O enclosure (1-4); see Figure 1

I/O enclosure locations (rear)

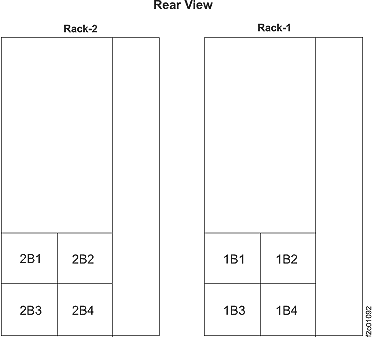

Figure 3. I/O enclosure locations at rear of rack (models 961, 96E)
I/O enclosure locations at rear of rack

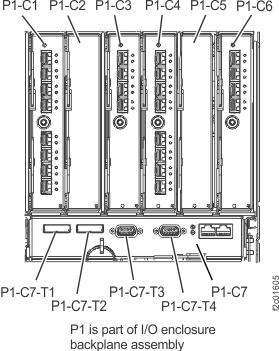

Figure 4. I/O enclosure locations (rear) (models 961, 96E)
I/O enclosure locations (rear)
Figure 5. Model 951/95E, 961/96E location codes for the device adapter card
Model 951 Location codes for the device adapter card

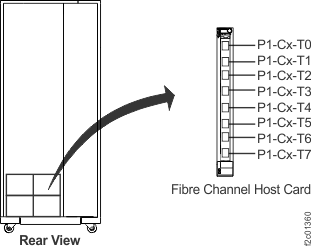

Figure 6. Model 951, 95E, location codes for the I/O enclosure Fibre Channel host card, 8Gb (4-port or 8-port)
Model 951 location codes for the I/O enclosure fibre channel host card
Table 4. Location codes for the I/O enclosure (rear)
Location code Part name Connector
U1400.rBn.sssssss1 I/O enclosure
U1400.rBn.sssssss-P11 I/O enclosure backplane assembly
U1400.rBn.sssssss-P1-Cx1
   (x = 1, 4)
I/O enclosure Fibre Channel host card
(short wave, long wave)

U1400.rBn.sssssss-P1-Cx-Ty1,2
   (x = 1, 4)
   (y = 0, 1, 2, 3, 4, 5, 6, 7  top to bottom)
  Customer Fibre cable
U1400.rBn.sssssss-P1-Cx1
   (x = 2, 5)
 Slot not used, leave empty
U1400.rBn.sssssss-P1-Cx1
   (x = 3, 6)
 I/O enclosure device adapter card
U1400.rBn.sssssss-P1-Cx-Ty1,2
   (x = 3, 6)
   (y = 1, 2, 3, 4  top to bottom)

FC-AL cable
U1400.rBn.sssssss-P1-C71 I/O enclosure PCIe/SPCN card
U1400.rBn.sssssss-P1-C7-T11   PCIe
U1400.rBn.sssssss-P1-C7-T21   PCIe
U1400.rBn.sssssss-P1-C7-T31   SPCN
U1400.rBn.sssssss-P1-C7-T41   SPCN
Notes:
  1. rBn where: r = rack (1-2); Bn = I/O enclosure (1-4); see Figure 3.
  2. Some physical location codes begin with zero and count upwards, others begin with one and count upwards. The storage facility uses parts from different hardware platforms. Most microcode and firmware logical resources identifiers begin with zero and count upwards.
