MES and installation instructions location codes (all-flash models 984, 985, 85E, 986, 86E, 988, 88E)
Physical location codes are used in the MES and installation instructions. To determine the
physical location code for a part, refer to the appropriate figure in Table 1.
Note: Locations shown here
are for all-flash models (machine types 533x and 9586). For standard models, refer to MES and installation instructions location codes (Models 984, 84E, 985, 85E, 986, 86E).
| Rack | Refer to: |
|---|---|
Rack-1 (Model 984 all-flash)
|
Figure 1 and Figure 2 |

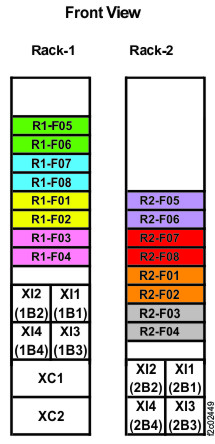

Rack-1, 2 (Models 985, 85E all-flash)
|
Figure 3 and Figure 4 |

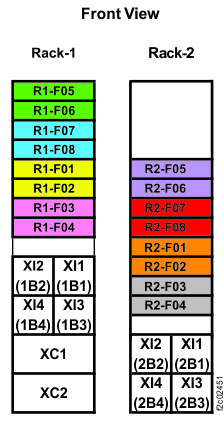

Rack-1, 2 (Models 986, 86E all-flash)
|
Figure 5 and Figure 6 |

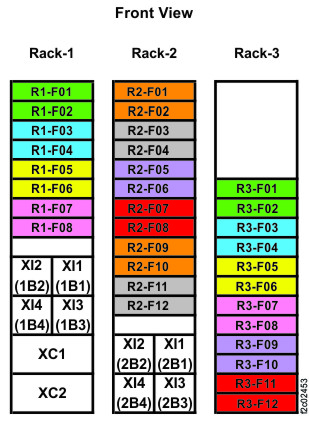

Rack-1, 2 (Models 988, 88E all-flash)
|
Figure 7 and Figure 8 |
Rack-3 (Model 88E all-flash)
|
Figure 7 and Figure 8 |
