Rack power and cooling part numbers, Models 951, 95E

This topic presents information on rack power and cooling part numbers for Models 951, 95E.

Use Table 1 as a directory for rack power and cooling parts.
Note: The following part numbers are the most recent for this version of the Parts Catalog. Your storage facility or serviceable event FRU list might contain an older or newer part number. The parts-ordering system recognizes all valid part numbers and automatically substitutes an available part number as needed.
Table 1. Start here, rack power and cooling (Models 951, 95E)
Part name Figure
Battery module set (a set is three battery modules) Figure 1
Battery module enclosure Figure 1
Battery module enclosure fan Figure 1
Battery module filler Figure 1
Booster power module Figure 2
Bus bar A1, 208VDC, primary Figure 6
Bus bar B1, 208VDC, primary Figure 6
Cables, battery module set Figure 10
Cables, bus bar, A1, 208VDC, primary Figure 9
Cables, bus bar, B1, 208VDC, primary Figure 9
Cables, power distribution units (PDU) Figure 14
Cables, primary power supply (PPS) Figure 8
Cables, rack identity card Figure 11
Cables, rack operator panel UEPO switch assembly Figure 12
Cables, RPC card Figure 13
Mainline power cable Table 9
Local remote switch card Figure 4
Power distribution unit (PDU) Figure 7
PPS 208V DDM power module Figure 2
Primary power supply Figure 2
Primary power supply fan Figure 2
Primary power supply sequencer module Figure 2
Rack identity card Figure 4
Rack operator panel UEPO switch assembly Figure 5
RPC card Figure 3
zSeries local remote switch card Figure 4
All other parts (Find the appropriate figure below)

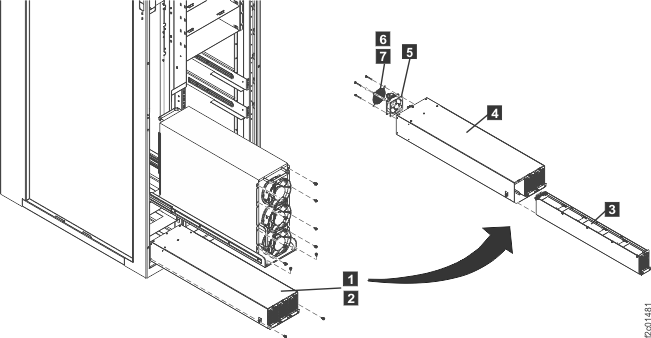

Figure 1. Battery module parts
Battery module parts
Table 2. Battery module parts (Models 951, 95E)
Index Part name Part number
1 Battery module enclosure 45W1068
2 Screw 54G2882
3 Battery module filler 23R0207
3 Battery module set (three modules) 45W67962 Screws
3 Battery module set FRU shipping materials (box, pads, pallet and field strapping kit). Only to be ordered if the shipping materials for the new FRU have been lost or damaged. 45W9747
3 Field strapping kit, see FRU shipping materials above. 92X9720
4 Battery module frame (not a FRU) 1
5 Battery module enclosure fan 22R4419
6 Fan guard, battery module enclosure 93H6016
7 Screw 1621200
Notes:
  1. Call your next level of support.
  2. Old-level battery modules have captive screws to fasten the module into the battery module enclosure. New-level battery modules do not use captive screws and instead use a loose screw FRU P/N 00G1268. The FRU kit for the new-level modules includes the screws. The screws can be ordered separately if needed.

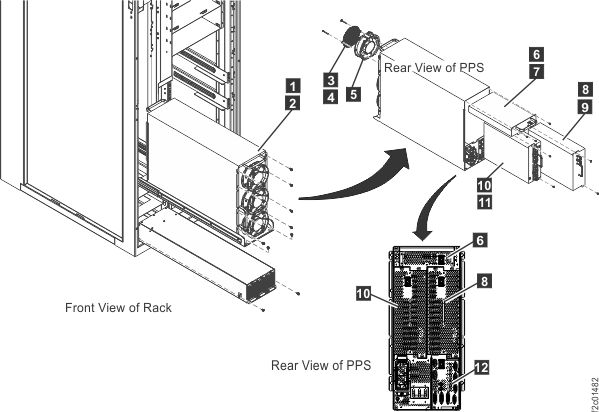

Figure 2. PPS parts
PPS parts
Table 3. PPS parts (Models 951, 95E)
Index Part name Part number
1 Primary power supply (PPS)

A base PPS contains the following parts:

  • 208VDC base module
  • 208V DDM power module
  • AC input power module
  • PFC module
  • Sequencer module
 45W8268
2 Screw 54G2882
3 Fan guard 22R5052
4 Screw, fan guard 22R6069
5 PPS Fan 22R4210
6 Booster power module (optional) 23R0493
7 Screw 54G2882
8 PPS 208V DDM power module 45W8270
9 Screw 1
10 PPS 208V DDM power module 45W8270
11 Screw 1
12 PPS sequencer module 23R0639
Notes:
  1. Call your next level of support.

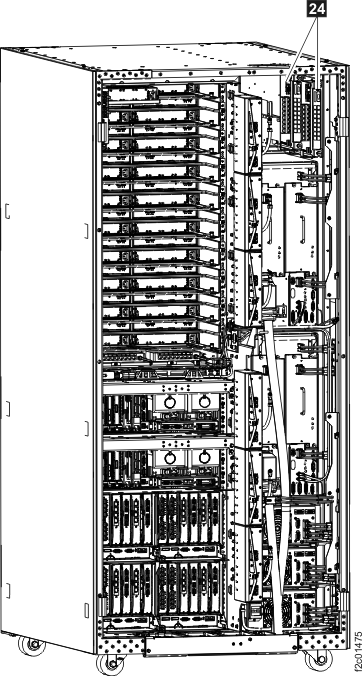

Figure 3. RPC card
RPC card
Table 4. RPC cards (Models 951, 95E)
Index Part name Part number
24 RPC card 17P9652

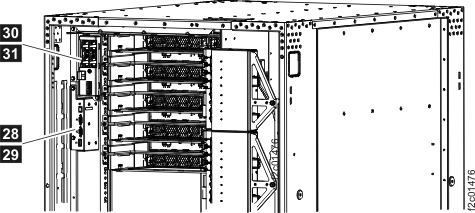

Figure 4. Rack identity card and local remote card
Rack identity card and local remote card
Table 5. Rack identity card and local remote card (Models 951, 95E)
Index Part name Part number
28 Rack identity card 45W7372
29 Screw 54G2882
30 Card, local remote switch 95P1963
30 Card, zSeries local remote switch 95P1962
31 Screw 54G2882

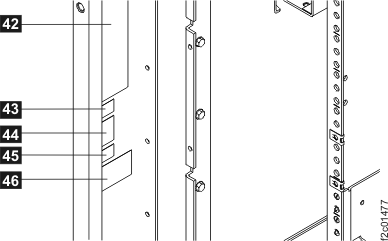

Figure 5. Rack front left labels
Rack front left labels
Table 6. Rack front left labels (Models 951, 95E)
Index Part name Part number
42 Label, agency 22R1790
43 Label, country of origin, Hungary 53P5888
43 Label, country of origin, US 44P3946
44 Label, IBM logo 97P2549
45 Label, manufacturing site, Hungary 22R1805
45 Label, manufacturing site, San Jose, CA 22R1804
46 Label, Nordic 97P5092

Parts of the rack power and cooling bus bars

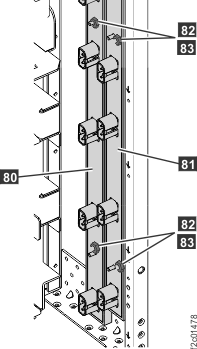

Figure 6. Bus bars, 208VDC primary (Model 94x shown; 95x and 96x similar)
Rack power and cooling parts (continued)
Table 7. Bus bars, 208VDC primary (Models 951, 95E)
Index Part name Part number
80 Bus bar B1, 208VDC, primary 22R6125
81 Bus bar A1, 208VDC, primary 22R6124
82 Washer 1622276
83 Lock nut 1622418
Figure 7. Locations for power distribution units
Locations for power distribution units
Table 8. Power distribution units (Models 951, 95E)
Location Part name Part number
E21 - E26 Power distribution unit (PDU) 45W8858

Cables for rack power and cooling parts

Figure 8. Cables connecting to rear of PPS
Cables connecting to rear of PPS
Table 9. Cables connecting to rear of PPS (Models 951, 95E)
Index Part name Part number
1 Cable, power (3-phase), short (PPS-2), 60A Chicago (7.7 feet) 22R1188
Cable, power (3-phase), long (PPS-1), 60A Chicago (9.5 feet) 22R1189
Cable, power (1-phase), short (PPS-2), Chicago (7.7 feet) 17P9590
Cable, power (1-phase), long (PPS-1), Chicago (9.5 feet) 17P9591

1 Cable, power (3-phase), long (PPS-1), 60A Japan (17.5 feet) 22R2224
Cable, power (3-phase), short (PPS-2), 60A Japan (15.8 feet) 22R1191

1 Cable, power (3-phase), long (PPS-1), EMEA (17.5 feet) 22R3795
Cable, power (3-phase), short (PPS-2), EMEA (15.8 feet) 22R3794
Cable, power (1-phase), long (PPS-1), EMEA (17.5 feet) 17P9596
Cable, power (1-phase), short (PPS-2), EMEA (15.8 feet) 17P9595

1 Cable, power (3-phase), long (PPS-1), non-EMEA (17.5 feet) 22R2222
Cable, power (3-phase), short (PPS-2), non-EMEA (15.8 feet) 22R1190
Cable, power (1-phase), long (PPS-1), non-EMEA (17.5 feet) 17P9593
Cable, power (1-phase), long (PPS-1), non-EMEA (17.5 feet) 17P9592

1 Cable, power (3-phase), top exit, long (PPS-2), 30A Japan (IEC 309) (3.2m / 10.5 feet) 99Y1185
Cable, power (3-phase), top exit, short (PPS-1), 30A Japan (IEC 309) (2.6m / 8.5 feet) 99Y1186

1 Cable, power (3-phase), top exit, long (PPS-2), 40A EMEA (3.2m / 10.5 feet) 99Y1173
Cable, power (3-phase), top exit, short (PPS-1), 40A EMEA (2.6m / 8.5 feet) 99Y1174
Cable, power (1-phase), top exit, long (PPS-2), 40A EMEA (3.2m / 10.5 feet) 99Y1182
Cable, power (1-phase), top exit, short (PPS-1), 40A EMEA (2.6m / 8.5 feet) 99Y1183

1 Cable, power (3-phase), top exit, long (PPS-2), 60A non-EMEA/Japan (RS) (3.2m / 10.5 feet) 99Y1176
Cable, power (3-phase), top exit, short (PPS-1), 60A non-EMEA/Japan (RS) (2.6m / 8.5 feet) 99Y1177
Cable, power (1-phase), top exit, long (PPS-2), 60A non-EMEA/Japan (IEC 309) (3.2m / 10.5 feet) 99Y1179
Cable, power (1-phase), top exit, short (PPS-1), 60A non-EMEA/Japan (IEC 309) (2.6m / 8.5 feet) 99Y1180
2 Cable, PPS 208V DDM Power Module to PDU (see Table 15 and Table 16)
3 Cable, PPS -to- 208V bus bar 22R6127
4 Cable, PPS 208V DDM Power Module to PDU (see Table 15 and Table 16)
6 Cable, PPS -to- RPC card (except Rack-1) 22R6139
Cable, PPS -to- RPC card (Rack 1) 22R6147
7 Cable, PPS -to- RPC card (except Rack-1) 22R6140
Cable, PPS -to- RPC card (Rack 1) 22R6148
8 Cable, PPS-1 E1-J5 -to- rack identity card C5-J1 (expansion rack) 45W7649
Cable, PPS-2 E2-J5 -to- rack identity card C5-J2 (expansion rack) 45W7650
9 Cable, PPS -to- PPS 22R5754
12 Cable, PPS-1 -to- battery module 22R5752
Cable, PPS-2 -to- battery module 22R5753
13 Cable (multi-connector "Y" power cord), PPS to Ethernet switch SW11 45W5284
14 Cable (multi-connector "X" power cord), PPS to Ethernet switch SW2 and management console1 45W6628
15 Cable, PPS-1-to- battery module 22R5749
Cable, PPS-2 -to- battery module 22R5750
16 Cable, PPS -to- rack operator panel UEPO switch 21R9592
17 Cable, PPS -to- 208V bus bar 22R6127
18 Cable, PPS -to- 208V bus bar2 22R6127
Notes:
  1. These cables are multi-connector cables that provide redundant power from both PPSs to the management console and Ethernet switches.
  2. The PPS sequencer module connector and cable have been eliminated on later levels of hardware. The parts exchange procedure explains this in greater detail.

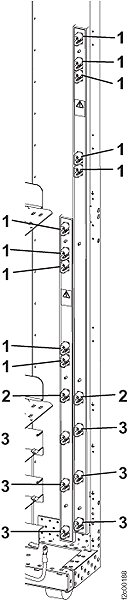

Figure 9. Cables for 208VDC primary bus bars A1 (right) and B1 (left)
Cables for 208VDC primary bus bars A1 (right) and B1 (left)
Table 10. Cables for 208V primary bus bars A1 and B1 (Models 951, 95E)
Index Part name Part number
1 Cable, 208V bus bar-to-PPS 45W8805
2 Cable, 208V bus bar A1-to-PDU E25 (see Table 15 and Table 16)
Cable, 208V bus bar B1-to-PDU E26 (see Table 15 and Table 16)
3 Cable, 208V bus bar-to-battery module 45W8806
Figure 10. Cables for battery module enclosure
Cables for battery module enclosure
Table 11. Cables for a battery module set (Models 951, 95E)
Index Part name Part number
1-2 Cable, battery module -to- PPS-1 22R5752
Cable, battery module -to- PPS-2 22R5753
3-4 Cable, battery module -to- 208V bus bar 22R6128
5 Cable, battery module -to- PPS-1 22R5749
6 Cable, battery module -to- PPS-2 22R5750

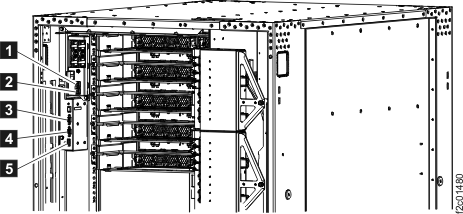

Figure 11. Cables for the rack identity card and the local remote switch card
Cables for the rack identity card and the local remote switch card
Table 12. Cables for the rack identity card and the local remote switch card (Models 951, 95E)
Index Part name Part number
3 Cable, rack identity card C5-J1 to RPC card C1-J1 (Rack 1) 45W7647
4 Cable, rack identity card C5-J2 to RPC card C2-J1 (Rack 1) 45W7648
3 Cable, rack identity card C5-J1 to PPS E1-J5 (expansion rack) 45W7649
4 Cable, rack identity card C5-J2 to PPS E2-J5 (expansion rack) 45W7650
5 Cable, rack identity card C5-J3 to rack front door LED assembly 45W6123
1 Cable, local remote switch card C6-J5 to-RPC card C1-P204 22R6141
2 Cable, local remote switch card C6-J6 to-RPC card C2-P204 22R6142

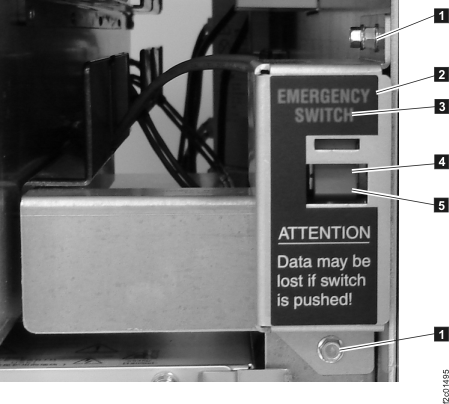

Figure 12. Cables for rack operator panel UEPO switch
Cables for rack operator panel UEPO switch
Table 13. Cables for the rack operator panel UEPO switch (Models 951, 95E)
Index Part name Part number
1 Screw, UEPO switch housing to rack N/A
2 UEPO switch housing
3 UEPO switch label
4 Screw, UEPO switch to housing
5 UEPO switch and cable assembly 45W8101

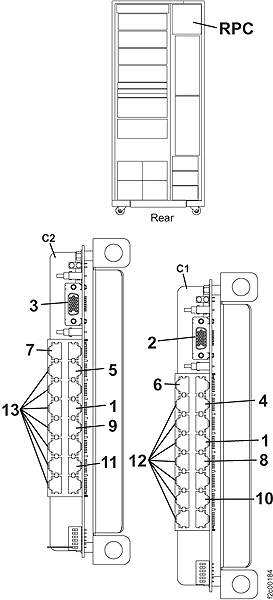

Figure 13. Cables for RPC cards
Cables for RPC cards
Table 14. Cables for RPC cards (Models 951, 95E)
Index Part name Part number
1 Cable, RPC card -to- RPC card 22R6138
2 Cable, RPC card C1-J1 -to- rack identity card C5-J1 45W7647
3 Cable, RPC card C2-J1 -to- rack identity card C5-J2 45W7648
4 Cable, RPC card C1-P204 -to- local remote switch card C6-J5 22R6141
5 Cable, RPC card C2-P204 -to- local remote switch card C6-J6 22R6142
6 Cable, RPC card -to- PPS (rack 1) 22R6147
7 Cable, RPC card -to- PPS (rack 1) 22R6148
8-9 Cable, RPC card -to- CEC enclosure 1 22R6143
10-11 Cable, RPC card -to- CEC enclosure 2 22R6144
12 Cable, RPC card -to- PPS (expansion rack) 22R6139
13 Cable, RPC card -to- PPS (expansion rack) 22R6140
Figure 14. Locations for power distribution units
Locations for power distribution units
Figure 15. Locations for power distribution unit (PDU) connectors
Locations for power distribution unit (PDU) connectors
Table 15 and Table 16 show power cables between the power distribution units (PDUs), primary power supply (PPS) modules, and bus bars.
Table 17, Table 18, and Table 19 show power cables between the PDUs and the CEC enclosure, I/O enclosure, and storage enclosure power supplies.
Table 15. PDU to PPS and bus bar cabling - Racks 1 and 2 (Models 951, 95E)
PDU port connects to connection description P/N FRU/PN PDU group
Note: For further guidance on the connects to locations in this table, refer to Rack power and cooling location codes (Models 951, 95E).
E21-J9 E1-E3-J1 PPS E1 (upper), right 208V module 45W5369 45W8802 yellow
E21-J10 E23-J10 PDU E23 45W8173 45W8804 yellow
E22-J9 E2-E1-J1 PPS E2 (lower), left 208V module 45W5370 45W8801 green
E22-J10 E24-J10 PDU E24 45W8174 45W8803 green
E23-J9 E2-E3-J1 PPS E2 (lower), right 208V module 45W5368 45W8802 yellow
E23-J10 E21-J10 PDU E21 45W8173 45W8804 yellow
E24-J9 E1-E1-J1 PPS E1 (upper), left 208V module 45W5371 45W8801 green
E24-J10 E22-J10 PDU E22 45W8174 45W8803 green
E25-J9 bus bar A1 primary bus bar A (longer) 45W5367 45W8804 yellow
E25-J10   not used
E26-J9 bus bar B1 primary bus bar B (shorter) 45W5366 45W8803 green
E26-J10   not used
Table 16. PDU to PPS and bus bar cabling - Racks 3 and 4 (Models 951, 95E)
PDU port connects to connection description P/N FRU/PN PDU group
Note: For further guidance on the connects to locations in this table, refer to Rack power and cooling location codes (Models 951, 95E).
E21-J9 E2-E3-J1 PPS E2 (lower), right 208V module 45W8176 45W8802 yellow
E21-J10 E23-J10, E25-J10 PDU E23, PDU E25 45W8450 45W8450 yellow
E22-J9 E1-E3-J1 PPS E1 (upper), right 208V module 45W8175 45W8801 green
E22-J10 E24-J10, E26-J10 PDU E24, PDU E26 45W8447 45W8447 green
E23-J9 E2-E1-J1 PPS E2 (lower), left 208V module 45W9653 45W8802 yellow
E23-J10 E21-J10, E25-J10 PDU E21, PDU E25 45W8450 45W8450 yellow
E24-J9 E1-E1-J1 PPS E1 (upper), left 208V module 45W5371 45W8801 green
E24-J10 E22-J10, E26-J10 PDU E22, PDU E26 45W8447 45W8447 green
E25-J9 bus bar A1 primary bus bar A (longer) 45W5367 45W8804 yellow
E25-J10 E21-J10, E23-J10 PDU E21, PDU E23 45W8450 45W8450 yellow
E26-J9 bus bar B1 primary bus bar B (shorter) 45W5366 45W8803 green
E26-J10 E22-J10, E24-J10 PDU E22, PDU E24 45W8447 45W8447 green
Table 17. PDU to CEC, I/O, and storage enclosure cabling - Rack 1 (Models 951, 95E)
PDU port connects to connection description P/N FRU/PN PDU group
Note: For further guidance on the connects to locations in this table, refer to:
PDU E21
E21-J1 G01-E2 storage enclosure G01 PSU E2 (right) 45W9127 45W8809 yellow
E21-J2 G02-E2 storage enclosure G02 PSU E2 (right) 45W9127 45W8809 yellow
E21-J3 G03-E2 storage enclosure G03 PSU E2 (right) 45W9127 45W8809 yellow
E21-J4 G04-E2 storage enclosure G04 PSU E2 (right) 45W9127 45W8809 yellow
E21-J5 G05-E2 storage enclosure G05 PSU E2 (right) 45W9127 45W8809 yellow
E21-J6   not used
E21-J7   not used
E21-J8   not used
PDU E22
E22-J1 G01-E1 storage enclosure G01 PSU E1 (left) 45W9128 45W8810 green
E22-J2 G02-E1 storage enclosure G02 PSU E1 (left) 45W9128 45W8810 green
E22-J3 G03-E1 storage enclosure G03 PSU E1 (left) 45W9128 45W8810 green
E22-J4 G04-E1 storage enclosure G04 PSU E1 (left) 45W9128 45W8810 green
E22-J5 G05-E1 storage enclosure G05 PSU E1 (left) 45W9128 45W8810 green
E22-J6   not used
E22-J7   not used
E22-J8   not used
PDU E23
E23-J1 G06-E2 storage enclosure G06 PSU E2 (right) 45W9127 45W8809 yellow
E23-J2 G07-E2 storage enclosure G07 PSU E2 (right) 45W9127 45W8809 yellow
E23-J3 G08-E2 storage enclosure G08 PSU E2 (right) 45W9127 45W8809 yellow
E23-J4 G09-E2 storage enclosure G09 PSU E2 (right) 45W9127 45W8809 yellow
E23-J5 G10-E2 storage enclosure G10 PSU E2 (right) 45W9127 45W8809 yellow
E23-J6   not used
E23-J7   not used
E23-J8   not used
PDU E24
E24-J1 G06-E1 storage enclosure G06 PSU E1 (left) 45W9128 45W8810 green
E24-J2 G07-E1 storage enclosure G07 PSU E1 (left) 45W9128 45W8810 green
E24-J3 G08-E1 storage enclosure G08 PSU E1 (left) 45W9128 45W8810 green
E24-J4 G09-E1 storage enclosure G09 PSU E1 (left) 45W9128 45W8810 green
E24-J5 G10-E1 storage enclosure G10 PSU E1 (left) 45W9128 45W8810 green
E24-J6   not used
E24-J7   not used
E24-J8   not used
PDU E25
E25-J1 XC1-E2 upper CEC, power supply E2 (right) 45W5216 45W8807 yellow
E25-J2 XC2-E2 lower CEC, power supply E2 (right) 45W5216 45W8807 yellow
E25-J3   not used
E25-J4   not used
E25-J5 XI2-E1 front upper left I/O, power supply E1 (left) 45W7925 45W8807 yellow
E25-J6 XI1-E1 front upper right I/O, power supply E1 (left) 45W7926 45W8807 yellow
E25-J7 XI4-E1 front lower left I/O, power supply E1 (left) 45W7925 45W8807 yellow
E25-J8 XI3-E1 front lower right I/O, power supply E1 (left) 45W7926 45W8807 yellow
PDU E26
E26-J1 XC1-E1 upper CEC, power supply E1 (left) 45W5217 45W8808 green
E26-J2 XC2-E1 lower CEC, power supply E1 (left) 45W5217 45W8808 green
E26-J3   not used
E26-J4   not used
E26-J5 XI2-E2 front upper left I/O, power supply E2 (right) 45W7924 45W8808 green
E26-J6 XI1-E2 front upper right I/O, power supply E2 (right) 45W7927 45W8808 green
E26-J7 XI4-E2 front lower left I/O, power supply E2 (right) 45W7924 45W8808 green
E26-J8 XI3-E2 front lower right I/O, power supply E2 (right) 45W7927 45W8808 green
Table 18. PDU to I/O and storage enclosure cabling - Rack 2 (Models 951, 95E)
PDU port connects to connection description P/N FRU/PN PDU group
Note: For further guidance on the connects to locations in this table, refer to:
PDU E21
E21-J1 G01-E2 storage enclosure G01 PSU E2 (right) 45W9127 45W8809 yellow
E21-J2 G02-E2 storage enclosure G02 PSU E2 (right) 45W9127 45W8809 yellow
E21-J3 G03-E2 storage enclosure G03 PSU E2 (right) 45W9127 45W8809 yellow
E21-J4 G04-E2 storage enclosure G04 PSU E2 (right) 45W9127 45W8809 yellow
E21-J5 G05-E2 storage enclosure G05 PSU E2 (right) 45W9127 45W8809 yellow
E21-J6 G06-E2 storage enclosure G06 PSU E2 (right) 45W9127 45W8809 yellow
E21-J7 G07-E2 storage enclosure G07 PSU E2 (right) 45W9127 45W8809 yellow
E21-J8   not used
PDU E22
E22-J1 G01-E1 storage enclosure G01 PSU E1 (left) 45W9128 45W8810 green
E22-J2 G02-E1 storage enclosure G02 PSU E1 (left) 45W9128 45W8810 green
E22-J3 G03-E1 storage enclosure G03 PSU E1 (left) 45W9128 45W8810 green
E22-J4 G04-E1 storage enclosure G04 PSU E1 (left) 45W9128 45W8810 green
E22-J5 G05-E1 storage enclosure G05 PSU E1 (left) 45W9128 45W8810 green
E22-J6 G06-E1 storage enclosure G06 PSU E1 (left) 45W9128 45W8810 green
E22-J7 G07-E1 storage enclosure G07 PSU E1 (left) 45W9128 45W8810 green
E22-J8   not used
PDU E23
E23-J1 G08-E2 storage enclosure G08 PSU E2 (right) 45W9127 45W8809 yellow
E23-J2 G09-E2 storage enclosure G09 PSU E2 (right) 45W9127 45W8809 yellow
E23-J3 G10-E2 storage enclosure G10 PSU E2 (right) 45W9127 45W8809 yellow
E23-J4 G11-E2 storage enclosure G11 PSU E2 (right) 45W9127 45W8809 yellow
E23-J5 G12-E2 storage enclosure G12 PSU E2 (right) 45W9127 45W8809 yellow
E23-J6 G13-E2 storage enclosure G13 PSU E2 (right) 45W9127 45W8809 yellow
E23-J7 G14-E2 storage enclosure G14 PSU E2 (right) 45W9127 45W8809 yellow
E23-J8   not used
PDU E24
E24-J1 G08-E1 storage enclosure G08 PSU E1 (left) 45W9128 45W8810 green
E24-J2 G09-E1 storage enclosure G09 PSU E1 (left) 45W9128 45W8810 green
E24-J3 G10-E1 storage enclosure G10 PSU E1 (left) 45W9128 45W8810 green
E24-J4 G11-E1 storage enclosure G11 PSU E1 (left) 45W9128 45W8810 green
E24-J5 G12-E1 storage enclosure G12 PSU E1 (left) 45W9128 45W8810 green
E24-J6 G13-E1 storage enclosure G13 PSU E1 (left) 45W9128 45W8810 green
E24-J7 G14-E1 storage enclosure G14 PSU E1 (left) 45W9128 45W8810 green
E24-J8   not used
PDU E25
E25-J1   not used
E25-J2   not used
E25-J3   not used
E25-J4   not used
E25-J5 XI2-E1 front upper left I/O, power supply E1 (left) 45W7925 45W8807 yellow
E25-J6 XI1-E1 front upper right I/O, power supply E1 (left) 45W7926 45W8807 yellow
E25-J7 XI4-E1 front lower left I/O, power supply E1 (left) 45W7925 45W8807 yellow
E25-J8 XI3-E1 front lower right I/O, power supply E1 (left) 45W7926 45W8807 yellow
PDU E26
E26-J1   not used
E26-J2   not used
E26-J3   not used
E26-J4   not used
E26-J5 XI2-E2 front upper left I/O, power supply E2 (right) 45W7924 45W8808 green
E26-J6 XI1-E2 front upper right I/O, power supply E2 (right) 45W7927 45W8808 green
E26-J7 XI4-E2 front lower left I/O, power supply E2 (right) 45W7924 45W8808 green
E26-J8 XI3-E2 front lower right I/O, power supply E2 (right) 45W7927 45W8808 green
Table 19. PDU to storage enclosure cabling - Racks 3 and 4 (Models 951, 95E)
PDU port connects to connection description P/N FRU P/N PDU group
Note: For further guidance on the connects to locations in this table, refer to Storage enclosure location codes (Models 951, 95E).
PDU E21
E21-J1 G01-E2 storage enclosure G01 PSU E2 (right) 45W9127 45W8809 yellow
E21-J2 G02-E2 storage enclosure G02 PSU E2 (right) 45W9127 45W8809 yellow
E21-J3 G03-E2 storage enclosure G03 PSU E2 (right) 45W9127 45W8809 yellow
E21-J4 G04-E2 storage enclosure G04 PSU E2 (right) 45W9127 45W8809 yellow
E21-J5 G05-E2 storage enclosure G05 PSU E2 (right) 45W9127 45W8809 yellow
E21-J6 G06-E2 storage enclosure G06 PSU E2 (right) 45W9127 45W8809 yellow
E21-J7 G07-E2 storage enclosure G07 PSU E2 (right) 45W9127 45W8809 yellow
E21-J8   not used
PDU E22
E22-J1 G01-E1 storage enclosure G01 PSU E1 (left) 45W9128 45W8810 green
E22-J2 G02-E1 storage enclosure G02 PSU E1 (left) 45W9128 45W8810 green
E22-J3 G03-E1 storage enclosure G03 PSU E1 (left) 45W9128 45W8810 green
E22-J4 G04-E1 storage enclosure G04 PSU E1 (left) 45W9128 45W8810 green
E22-J5 G05-E1 storage enclosure G05 PSU E1 (left) 45W9128 45W8810 green
E22-J6 G06-E1 storage enclosure G06 PSU E1 (left) 45W9128 45W8810 green
E22-J7 G07-E1 storage enclosure G07 PSU E1 (left) 45W9128 45W8810 green
E22-J8   not used
PDU E23
E23-J1 G08-E2 storage enclosure G08 PSU E2 (right) 45W9127 45W8809 yellow
E23-J2 G09-E2 storage enclosure G09 PSU E2 (right) 45W9127 45W8809 yellow
E23-J3 G10-E2 storage enclosure G10 PSU E2 (right) 45W9127 45W8809 yellow
E23-J4 G11-E2 storage enclosure G11 PSU E2 (right) 45W9127 45W8809 yellow
E23-J5 G12-E2 storage enclosure G12 PSU E2 (right) 45W9127 45W8809 yellow
E23-J6 G13-E2 storage enclosure G13 PSU E2 (right) 45W9127 45W8809 yellow
E23-J7 G14-E2 storage enclosure G14 PSU E2 (right) 45W9127 45W8809 yellow
E23-J8   not used
PDU E24
E24-J1 G08-E1 storage enclosure G08 PSU E1 (left) 45W9128 45W8810 green
E24-J2 G09-E1 storage enclosure G09 PSU E1 (left) 45W9128 45W8810 green
E24-J3 G10-E1 storage enclosure G10 PSU E1 (left) 45W9128 45W8810 green
E24-J4 G11-E1 storage enclosure G11 PSU E1 (left) 45W9128 45W8810 green
E24-J5 G12-E1 storage enclosure G12 PSU E1 (left) 45W9128 45W8810 green
E24-J6 G13-E1 storage enclosure G13 PSU E1 (left) 45W9128 45W8810 green
E24-J7 G14-E1 storage enclosure G14 PSU E1 (left) 45W9128 45W8810 green
E24-J8   not used
PDU E25
E25-J1 G15-E2 storage enclosure G15 PSU E2 (right) 45W9127 45W8809 yellow
E25-J2 G16-E2 storage enclosure G16 PSU E2 (right) 45W9127 45W8809 yellow
E25-J3 G17-E2 storage enclosure G17 PSU E2 (right) 45W9127 45W8809 yellow
E25-J4 G18-E2 storage enclosure G18 PSU E2 (right) 45W9127 45W8809 yellow
E25-J5 G19-E2 storage enclosure G19 PSU E2 (right) 45W9127 45W8809 yellow
E25-J6 G20-E2 storage enclosure G20 PSU E2 (right) 45W9127 45W8809 yellow
E25-J7   not used
E25-J8   not used
PDU E26
E26-J1 G15-E1 storage enclosure G15 PSU E1 (left) 45W9128 45W8810 green
E26-J2 G16-E1 storage enclosure G16 PSU E1 (left) 45W9128 45W8810 green
E26-J3 G17-E1 storage enclosure G17 PSU E1 (left) 45W9128 45W8810 green
E26-J4 G18-E1 storage enclosure G18 PSU E1 (left) 45W9128 45W8810 green
E26-J5 G19-E1 storage enclosure G19 PSU E1 (left) 45W9128 45W8810 green
E26-J6 G20-E1 storage enclosure G20 PSU E1 (left)
45W9128 45W8810 green
E26-J7   not used
E26-J8   not used
