Exchange the battery module enclosure fan

Before you begin

Icon for electrostatic discharge wrist strapUse approved ESD procedures to prevent damage.

Attention:
  • This procedure is not a stand-alone procedure. Customer disruption and damage to the hardware might occur when microcode and power boundaries are not in the proper conditions for this service action.
  • If a serviceable event FRU repair directed you to this procedure, the microcode and power boundaries are already set.
  • If a serviceable event FRU repair did not direct you to this procedure, see MAP1230 Replace a FRU without using a serviceable event.
Notes:
  • All the cables and FRUs to be removed must be uniquely identified so they can be reinstalled correctly.
  • If an installed earthquake resistance kit prevents you from accessing this FRU, refer to MAP1600.

Remove the battery module enclosure fan

Procedure

  1. To locate this FRU, take one of the following actions and then return here and continue to replace the FRU:
    • If this FRU has a FRU identify indicator, use the FRU identify indicator, which is listed in MAP1240 Locating FRUs by using identify indicators. If not, use the location code.
      Note: There might be cases where the FRU failure or fencing conditions prevent the FRU LED indicator from being lit even if the FRU has power.
    • Use the location code, which is listed in MAP1245 Finding FRUs by using location codes.
    • If there is no FRU identify indicator or location code, you were sent here by an isolation MAP or symbolic FRU procedure. Use the information in that procedure and the figures in this procedure to locate the proper part to exchange.
  2. Most, but not all, FRUs have identify indicators. Use the flashing amber or solid blue FRU identify indicators to ensure that you are working on the correct enclosure or FRU.
  3. To gain full access, unfasten Callout label 1 and then rotate the needed power distribution units (PDUs) away from the rear of the rack.
    Figure 1. Power distribution units in normal position (rack rear view)
    Power distribution units in normal position (rack rear view)
  4. Unplug the battery module enclosure fan cable.
  5. Unscrew the screws Callout label 1 to loosen the fan from the battery backup unit.

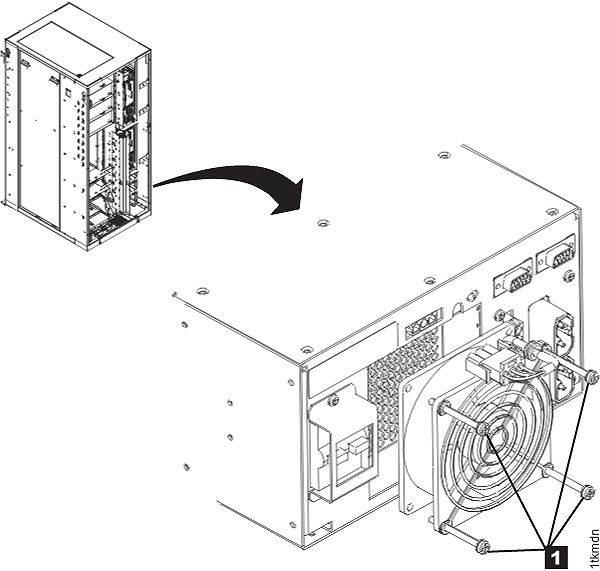

    Figure 2. Remove the battery backup unit fan
    Remove the battery backup unit fan
  6. Remove the fan.

Install the battery module enclosure fan

Procedure

  1. Position the fan cable rubber grommet up into the sheetmetal slot and then place the fan into the fan recess.
  2. Install fan wire guard and the four screws Callout label 1. See Figure 2.
  3. Rotate and fasten the power distribution units (PDU) to the normal position.
  4. Exit this service information center parts exchange procedure and return to the procedure that sent you here.
